Asus X670E Gene EFI -- Adaptable to Other X670, X670E, B650 and B650E Boards
- Thread starter CaseySJ
- Start date
- Joined
- Dec 16, 2022
- Messages
- 185
Yes, open maciasl and save systems dsdt and send me
- Joined
- Dec 16, 2022
- Messages
- 185
No, I just created rename of the name _prw to zprw and apparently it starts with this rename, so it's okay
Sorry for taking too long, weekdays are more complicated.Yes, open maciasl and save systems dsdt and send me
MaciASL gives an error message and doesn't open:
- Joined
- Dec 16, 2022
- Messages
- 185
ok try this and if boot open maciasl and send system dsdt
A similar error occurred, see bellow.
Maybe you can send me a procedure on how to do this changes myself so we can test faster?
In MaciASL we should save DSDT in “.dsl” format instead of “.aml”. The former is un-compiled and the latter is compiled. Compiling will generate errors.

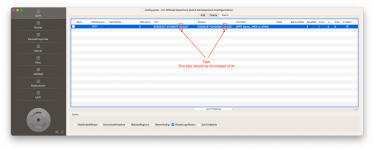

The "Name _PRW" patch didn't work in that EFI because of this typo:
My original patch is posted here:
Asus X670E Gene EFI -- Adaptable to Other X670, X670E, B650 and B650E Boards
The last EFI produced the same result, reboots. But I tried something different later: I removed the Kingston SATA drive from the pc and now it opens the opencore boot menu and I can choose the installer. It now freezes in this screen (not sure why upload image is broken for me, so I am...
forum.amd-osx.com
Last edited:
Hi @CaseySJ and @Lorys89 ,
I got confused about your last posts.

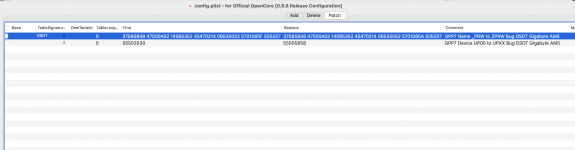

Lorys posted this config.plist acpi patches (both are enabled, I couldn't make it fit on the screen):
They don't have the byte as 00, but 50 as said correct.
Lorys EFI only includes SSDT-GIGABYTE-B650.aml in the add part.
Casey you pointed me to a zip containing DSDT-Patched.aml and DSDT.aml.
Should I remove the gigabyte's aml and include yours?
I got confused about your last posts.
Lorys posted this config.plist acpi patches (both are enabled, I couldn't make it fit on the screen):
They don't have the byte as 00, but 50 as said correct.Lorys EFI only includes SSDT-GIGABYTE-B650.aml in the add part.
Casey you pointed me to a zip containing DSDT-Patched.aml and DSDT.aml.
Should I remove the gigabyte's aml and include yours?
This patch is applied on ACPI -> Patch instead of ACPI -> Add.

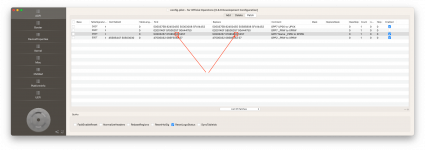

The ACPI patches are simply entered in ACPI -> Add section of OpenCore Configurator. The screenshot in your previous post already shows the patches. Both of those patches should be enabled.
If your system boots and works properly with just those two patches, then you're all set.

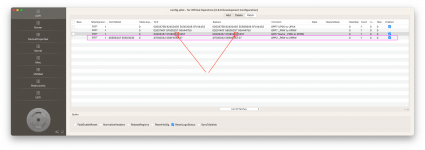

However, the patch in magenta box below should also be added to your configuration otherwise one of the standard system SSDTs will not load:
The details of this patch are as follows:
- TableSignature: SSDT
- OemTableId: 45585447 50503030
- Find: 47505032 085F5052 57
- Replace: 47505032 08585052 57
- Comment: GPP2 _PRW to XPRW
- Count: 1
- Enabled: True
Last edited:
** Updated USB Port Map Kexts for Asus X670E Gene **
If you're using the USB port map files I included in the EFI folders for X670E Gene, please replace these two files in EFI/OC/Kexts with the attached versions:
- USBPorts-XHC1-XHC2-XHC4.kext
- USBPorts-XHC1-XHC2-XHC4-NO-BT.kext

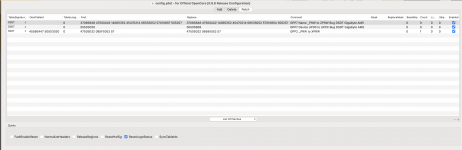

I just tried to add the patch:
The computer booted fine, but MaciASL still gives the error message:
Any more ideas on how may I proceed? Thanks again!
@CaseySJ which of the SSDT methods do you recommend for me now? https://dortania.github.io/Getting-Started-With-ACPI/ssdt-methods/ssdt-methods.html
I am not sure what's included in @Lorys89 SSDT-GIGABYTE-B650.aml (attached here).
I saw in your EFI you include some common AMLs, such as:
The dortania zen guide (not updated to AM5) refers to these ones:
I am not sure what's included in @Lorys89 SSDT-GIGABYTE-B650.aml (attached here).
I saw in your EFI you include some common AMLs, such as:
- SSDT-CPUR
- SSDT-EC-AMD
- SSDT-USBX
- SSDT-DTPG
The dortania zen guide (not updated to AM5) refers to these ones:
@Lorys89 has actually combined all of those into a single SSDT-GIGABYTE-B650.aml.
