Asus X670E Gene EFI -- Adaptable to Other X670, X670E, B650 and B650E Boards

[jubarim]

The odd thing is that Lorys EFI in message #50 works to install , but as soon as the installer boots for the first time and I chose the option to continue the install, but it reboots immediately. I am not even able to see anything on the screen.

This has happened before when I was trying cheesetoast's EFI here. I think the messages are the same as my post #8 in that thread.



[CaseySJ]

@Lorys89,

Is this patch correct and/or needed?



[Lorys89]

The odd thing is that Lorys EFI in message #50 works to install , but as soon as the installer boots for the first time and I chose the option to continue the install, but it reboots immediately. I am not even able to see anything on the screen.

This has happened before when I was trying cheesetoast's EFI here. I think the messages are the same as my post #8 in that thread.

From disk utilities formatted in guid journaled? You need to format in guid APFS
And you should fix



[CaseySJ]

The odd thing is that Lorys EFI in message #50 works to install , but as soon as the installer boots for the first time and I chose the option to continue the install, but it reboots immediately. I am not even able to see anything on the screen.

This has happened before when I was trying cheesetoast's EFI here. I think the messages are the same as my post #8 in that thread.

What is meant by I choose the option to continue the install? Which option or step is this referring to?

Each time the system reboots, are you pressing F12 and selecting the USB flash disk to boot from?

When you formatted the macOS SSD in Disk Utility, do you remember selecting Format = APFS and Scheme = GUID Partition Map?



[Lorys89]

@Lorys89,

Is this patch correct and/or needed?

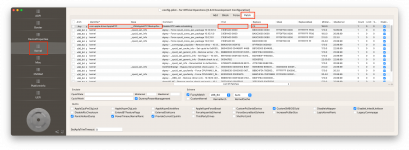

View attachment 10095

Yes in all am4/am5 Solves automatic wake From long night sleeps
With that fix you will put in sleep and after 2 days it will still be in sleep



[CaseySJ]

Yes in all am4/am5 Solves automatic wake From long night sleeps
With that fix you will put in sleep and after 2 days it will still be in sleep

Because Find is empty, but Replace is C3, does it mean the entire function __ZN8AppleRTC18setupDateTimeAlarmEPK11RTCDateTime gets replaced by C3C3C3...C3C3?

I believe C3 is the opcode for RETN (return).



[jubarim]

I guess that's my mistake!

Checking the SATA here: GUID Partition Map | volume is Mac OS Extended (Journaled)



let me start over.



[Lorys89]

Because Find is empty, but Replace is C3, does it mean the entire function __ZN8AppleRTC18setupDateTimeAlarmEPK11RTCDateTime gets replaced by C3C3C3...C3C3?

I believe C3 is the opcode for RETN (return).

https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/Sample.plist
Go to line 694



[CaseySJ]

https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/Sample.plist
Go to line 694

Count = 1, so only the first byte is replaced by opcode C3, which simply returns from the function. Clever.



[Lorys89]

Then edit my efi that works for the user, and change the rename prw with the new created and see if it works



[jubarim]

Install finished!

I am using Lorys EFI from this post (#50).



Now I need to figure out which patches are better



[Lorys89]

Can you try me efi with the new rename of casey? I send you efi



[Lorys89]

@jubarim try this



[jubarim]

@jubarim try this

Sure...

It didn't boot:



[Lorys89]

@CaseySJ verify the rename



[CaseySJ]

Sure...

It didn't boot:

@Lorys89,

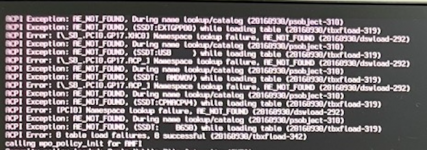

There are ripple effects -- now 8 ACPI tables failed, and 8 succeeded. Look like we just need to stay with original patch.



[Lorys89]

Sure...

It didn't boot:

View attachment 10099

revert to efi post #50



[CaseySJ]

@CaseySJ verify the rename

Patch is okay.



[Edhawk]

Check the ACPI tables in your setup, as there are a number of errors shown at the top of the screen image you posted above.



[Lorys89]

@Lorys89,

There are ripple effects -- now 8 ACPI tables failed, and 8 succeeded. Look like we just need to stay with original patch.

I need to verify the rename you posted, I copied it without even verifyingI need to verify the rename you posted, I copied it without even verifying
