AMD Rayon R7 5800H Install Monterey kernel Panic

[zxc2689963]

Hello everyone, the Monterey kernel panic problem has been solved for AMD R7 5800H notebook installation. It is a great thing that the CPU can now run on 8 cores. Thank you guys very much.Thank them for discovering the problem and providing kernel patches @ExtremeX@Visual

Brand: Lenovo
Model: Legion 5 6th Gen
CPU: AMD Ryzen 7 5800h
GPU: AMD Radeon RX 6600m 8GB ( Separate GPU mode)
HDD: Samsung SSD 970 EVO Plus 1TB (1000 GB, PCI-E 3.0 x4)
WDS500G3X0C-00SJG0 (500 GB, PCI-E 3.0 x4)
Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC
Intel(R) Wi-Fi 6E AX210 160MHz
Ram: x2 8GB 3200mhz ddr4
Display: 15.6 1080p 165HZ

Updated October 5, 2023
Problems solved:
1. You do not need to disable XHCI
2. The microphone problem is rectified
3. Monitor brightness can be adjusted, only in Ventura

Unresolved issues:
Failure to wake from sleep



[zty199]

Sorry, Base to _thread_dispatch, not _thread_invoke

Bravo! There is no kernel panic now! Thank you guys very much, you've done a great job! @ExtremeXT @Visual

Now I need to figure out why on my PC it just stuck at somewhere after PCI Configuration, maybe USB/SSD related......



[ExtremeXT]

Bravo! There is no kernel panic now! Thank you guys very much, you've done a great job! @ExtremeXT @Visual

Now I need to figure out why on my PC it just stuck at somewhere after PCI Configuration, maybe USB/SSD related......

Excellent! I think the problem is the USB controller, because the original EFI by the OP used an outdated kext for generic USB 3.0 (XHCI) support. As a temporary solution, can you try adding that kext? If it boots, I'll make an injector kext that adds native support to Apple's kexts (like XHCI-Unsupported) for Intel. Get the GenericUSBXHCI kext from the OP's EFI.



[zty199]

Excellent! I think the problem is the USB controller, because the original EFI by the OP used an outdated kext for generic USB 3.0 (XHCI) support. As a temporary solution, can you try adding that kext? If it boots, I'll make an injector kext that adds native support to Apple's kexts (like XHCI-Unsupported) for Intel. Get the GenericUSBXHCI kext from the OP's EFI.

I disabled USBToolBox and UTBMap, and enable GenericUSBXHCI, and it shows a forbidden sign at last, with this kernel panic. Maybe because I'm using a USB 3.0 installer?


Here's all usable USB port info I got from Windows, but I only got BIOS device path for Camera...... I don't know how to make kexts like USBPorts.kext on AMD platform......

Have to go to sleep now, still got work to do tomorrow......



[ExtremeXT]

I disabled USBToolBox and UTBMap, and enable GenericUSBXHCI, and it shows a forbidden sign at last, with this kernel panic. Maybe because I'm using a USB 3.0 installer?
View attachment 7285

Here's all usable USB port info I got from Windows, but I only got BIOS device path for Camera...... I don't know how to make kexts like USBPorts.kext on AMD platform......

Have to go to sleep now, still got work to do tomorrow......

Keep USBToolBox and UTBMap enabled. This is an NVMe problem, what NVMe drive do you have?
Good night.

- ExtremeXT



[zxc2689963]

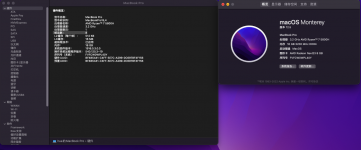

A breakthrough! The patch worked and successfully resolved the kernel panic, thank you guys very much



[ExtremeXT]

A breakthrough! The patch worked and successfully resolved the kernel panic, thank you guys very much

Hello, glad it worked for you. Can you send a screenshot of About this Mac and an IOReg dump? Also, can you send me the hardware IDs of the USB controllers from Windows? I need it for making an injector kext instead of GenericUSBXHCI. It's outdated and shouldn't be used.

- ExtremeXT



[Jo-Toku]

Here is my result



[ExtremeXT]

Here is my result

View attachment 7293

What exact macOS version are you trying to boot? Are you using my latest EFI + the new patch from Visual?



[Jo-Toku]

What exact macOS version are you trying to boot? Are you using my latest EFI + the new patch from Visual?

Monterey 17.2.02./ 12.2



[ExtremeXT]

Monterey 17.2.02./ 12.2

Use Monterey 12.6.



[ExtremeXT]

I don't know how to make kexts like USBPorts.kext on AMD platform......

USBToolBox + UTBMap is a much better approach for USB mapping and works on every platform.



[zty199]

Keep USBToolBox and UTBMap enabled. This is an NVMe problem, what NVMe drive do you have?
Good night.

- ExtremeXT

Sorry for bothering you again...... I got a Hynix PC711 and a Phison E12S.

I enabled USBToolBox and UTBMap, and disabled GenericUSBXHCI, tried to remove all my NVME drives (no sata drives) and my wireless network card, when trying to boot Monterey 12.6, it still stuck here......


Like @Middleman said, I have checked the order of kexts, but seems nothing wrong...... Even tried to use UTBDefault.kext, add npci=0x2000/3000, etc. , but nothing helps. Maybe the same reason that I can't install Big Sur as well, always stuck at similar places.......

Hope you got any ideas?



[ExtremeXT]

Sorry for bothering you again...... I got a Hynix PC711 and a Phison E12S.

I enabled USBToolBox and UTBMap, and disabled GenericUSBXHCI, tried to remove all my NVME drives (no sata drives) and my wireless network card, when trying to boot Monterey 12.6, it still stuck here......
View attachment 7294

Like @Middleman said, I have checked the order of kexts, but seems nothing wrong...... Even tried to use UTBDefault.kext, add npci=0x2000/3000, etc. , but nothing helps. Maybe the same reason that I can't install Big Sur as well, always stuck at similar places.......

Hope you got any ideas?

Leave GenericUSBXHCI enabled for now, along with USBToolBox and UTBMap. I will make an injector kext to avoid GenericUSBXHCI when you send me the hardware IDs.

AFAIK the Hynix PC117 uses some proprietary controller and doesn't work on macOS... not sure about the Phison.

EDIT: Apparently Hynix released a firmware update which fixes it, maybe make sure it's on the latest one.

SK Hynix P31 NVMe macOS support possible via NVMeFix? · Issue #1662 · acidanthera/bugtracker

SK Hynix P31 does not work with MacOS because apparently Apple's NVMe drivers are causing the P31 firmware to timeout on a request, resulting in a kernel panic. Is this something that is fixable vi...

github.com

Phison should also work according to some real Mac users

Upgrading 2013-2015 Macbook Pro SSD to M.2 NVMe

Nice @NevREnding and thanks for posting Your build is of interest to me (and the audience of this thread to a large extent) because I was told 2015 15-inch MacBook Pro is the only PCIe 3.0 system in the gang. So it pops up at the right time. lol It seems that no wonder has happened in terms...

forums.macrumors.com

Try this EFI, it has the kernel patch pre-applied and GenericUSBXCHI.

- ExtremeXT



[ExtremeXT]

@zty199 Would it be possible for you to take a video/screenshots of each section of your laptop's BIOS?



[zxc2689963]

I successfully installed it, but it is very difficult to start the installation. It is very likely to be stuck in AppleNVME Assert failed, and I need to restart repeatedly and it will always succeed once. I restart more than 20 times before successful installation,

I have tried to leave only one SN750 hard drive with the same error, GenericUSBXHCI.kext cannot be used to start the installer



[Middleman]

I successfully installed it, but it is very difficult to start the installation. It is very likely to be stuck in AppleNVME Assert failed, and I need to restart repeatedly and it will always succeed once. I restart more than 20 times before successful installation,

I have tried to leave only one SN750 hard drive with the same error, GenericUSBXHCI.kext cannot be used to start the installer

Have you made a DEBUG version of OC? It should help diagnose where the stuck booting issue is.



[Jo-Toku]

I successfully installed it, but it is very difficult to start the installation. It is very likely to be stuck in AppleNVME Assert failed, and I need to restart repeatedly and it will always succeed once. I restart more than 20 times before successful installation,

I have tried to leave only one SN750 hard drive with the same error, GenericUSBXHCI.kext cannot be used to start the installer

So, if you reboot you need to try it 20 or so times for the laptop boot successfully? Also, only with one drive installed?



[ExtremeXT]

I successfully installed it, but it is very difficult to start the installation. It is very likely to be stuck in AppleNVME Assert failed, and I need to restart repeatedly and it will always succeed once. I restart more than 20 times before successful installation,

I have tried to leave only one SN750 hard drive with the same error, GenericUSBXHCI.kext cannot be used to start the installer

GenericUSBXHCI is likely the cause of the problem as it's a very old kext. I'll try to make an injector kext for the USB controllers so we don't have to rely on it.

- ExtremeXT



[ExtremeXT]

Try this EFI, USB should work normally with it.

- ExtremeXT



[zxc2689963]

Try this EFI, USB should work normally with it.

- ExtremeXT

Thanks again for your help，Use USBToolBox will be stuck in USBToolBox: XHC0: waitForMatchingService failed or timed out

Use USBPorts.kext to customize the correct port will be stuck in AppleNVME Assert failed

Using GenericUSBXHCI.kext can enter the system normally even if it is restarted, but cannot be used to start the installation program. It will cause USB failure and can only be installed in a non-USB way, which is why many people cannot install it
