AMD Rayon R7 5800H Install Monterey kernel Panic

[zxc2689963]

Hello everyone, the Monterey kernel panic problem has been solved for AMD R7 5800H notebook installation. It is a great thing that the CPU can now run on 8 cores. Thank you guys very much.Thank them for discovering the problem and providing kernel patches @ExtremeX@Visual

Brand: Lenovo
Model: Legion 5 6th Gen
CPU: AMD Ryzen 7 5800h
GPU: AMD Radeon RX 6600m 8GB ( Separate GPU mode)
HDD: Samsung SSD 970 EVO Plus 1TB (1000 GB, PCI-E 3.0 x4)
WDS500G3X0C-00SJG0 (500 GB, PCI-E 3.0 x4)
Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC
Intel(R) Wi-Fi 6E AX210 160MHz
Ram: x2 8GB 3200mhz ddr4
Display: 15.6 1080p 165HZ

Updated October 5, 2023
Problems solved:
1. You do not need to disable XHCI
2. The microphone problem is rectified
3. Monitor brightness can be adjusted, only in Ventura

Unresolved issues:
Failure to wake from sleep



[Shaneee]

@ExtremeXT It may be possible but not easy. Not sure if that would fix the issue though.



[ExtremeXT]

@Shaneee Thanks for your input. I'm pretty sure it would fix it since that's where it panics, but I'm guessing that it's not worth the time.

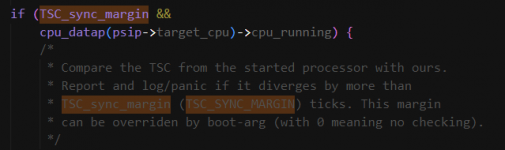

On another note, this seems like what we need! (Image)

@zty199 Please try this EFI.

@craighazan Do you also have this laptop? If so can you test it?

- ExtremeXT



[zty199]

@Shaneee Thanks for your input. I'm pretty sure it would fix it since that's where it panics, but I'm guessing that it's not worth the time.

On another note, this seems like what we need! (Image)

@zty199 Please try this EFI.

@craighazan Do you also have this laptop? If so can you test it?

- ExtremeXT

Seems to be the same panic with TSC_sync_margin=0



[ExtremeXT]

@zty199 Okay, test this new EFI. It includes a new kernel patch that should fully suppress/remove the panic. Credits to @Visual

- ExtremeXT



[zty199]

@zty199 Okay, test this new EFI. It includes a new kernel patch that should fully suppress/remove the panic. Credits to @Visual

- ExtremeXT

OC: Kernel patcher result 17 for kernel - Not Found

Seems to be the same kernel panic



[ExtremeXT]

OC: Kernel patcher result 17 for kernel - Not Found

Seems to be the same kernel panic
View attachment 7274
View attachment 7275

Do you have another PC with Monterey? I need a dump of the kernel.



[zty199]

Do you have another PC with Monterey? I need a dump of the kernel.

I have another PC, but it has been upgraded to Ventura 13.0 beta 5...... I need to downgrade to 12.6 first



[ExtremeXT]

I have another PC, but it has been upgraded to Ventura 13.0 beta 5...... I need to downgrade to 12.6 first

Try setting FindMask to nothing (empty) in the TSC kernel patch. I'm not home right now so I cannot send a modified EFI.



[ExtremeXT]

@ztx16 Here's the EFI.



[zty199]

Try setting FindMask to nothing (empty) in the TSC kernel patch. I'm not home right now so I cannot send a modified EFI.

Still got OC: Kernel patcher result 17 for kernel - Not Found


BTW, I just install Monterey 12.6 on another PC in an external disk, and I got kernel log from Hackintool. Is this log what you need?



[ExtremeXT]

Still got OC: Kernel patcher result 17 for kernel - Not Found
View attachment 7276

BTW, I just install Monterey 12.6 on another PC in an external disk, and I got kernel log from Hackintool. Is this log what you need?

I need the kernel file from /System/Library/Kernels.

EDIT: Don't need it anymore, will send new EFI soon.

- ExtremeXT



[zty199]

I need the kernel file from /System/Library/Kernels.

- ExtremeXT

Here it is. Got from 12.6 (21G115)



[ExtremeXT]

Here it is. Got from 12.6 (21G115)

Another person just sent it to me 1 minute ago... Sorry for the trouble...



[ExtremeXT]

@zty199
Here's the new EFI, with a new kernel patch for Monterey 12.6 (old one was for Ventura as that was the only kernel I had on hand).
As before, credits to @Visual.
Good luck.

EDIT: I modified the EFI, if you already downloaded it re-download.

- ExtremeXT



[zty199]

@zty199
Here's the new EFI, with a new kernel patch for Monterey 12.6 (old one was for Ventura as that was the only kernel I had on hand).
As before, credits to @Visual.
Good luck.

EDIT: I modified the EFI, if you already downloaded it re-download.

- ExtremeXT

Now AppleACPIPlatform shows again......



[ExtremeXT]

Now AppleACPIPlatform shows again......
View attachment 7282

Wonderful news! Can you record the boot process?

- ExtremeXT



[zty199]

Wonderful news! Can you record the boot process?

- ExtremeXT

Seem to be @sched_prim.c:3617, not sure what you need......
https://github.com/apple-oss-distri...2bb0042026747cc/osfmk/kern/sched_prim.c#L3600



[ExtremeXT]

Seem to be @sched_prim.c:3617, not sure what you need......
https://github.com/apple-oss-distri...2bb0042026747cc/osfmk/kern/sched_prim.c#L3600

Okay, good, we're at the last panic for Non-monotonic time. Sadly @Visual is unavailable to make a new patch right now, when he's done I'll ping you and send you a new EFI.



[Visual]

Seem to be @sched_prim.c:3617, not sure what you need......
https://github.com/apple-oss-distri...2bb0042026747cc/osfmk/kern/sched_prim.c#L3600

@ExtremeXT is not home at this time, so I will just provide you the patch.
Duplicate one of my patches (Comment includes "Visual") and set
Base to _thread_invoke
Find to 492b9f800400000f825f010000
and
Replace to 492b9f80040000669066906690
and try again



[Visual]

@ExtremeXT is not home at this time, so I will just provide you the patch.
Duplicate one of my patches (Comment includes "Visual") and set
Base to _thread_invoke
Find to 492b9f800400000f825f010000
and
Replace to 492b9f80040000669066906690
and try again

Sorry, Base to _thread_dispatch, not _thread_invoke
