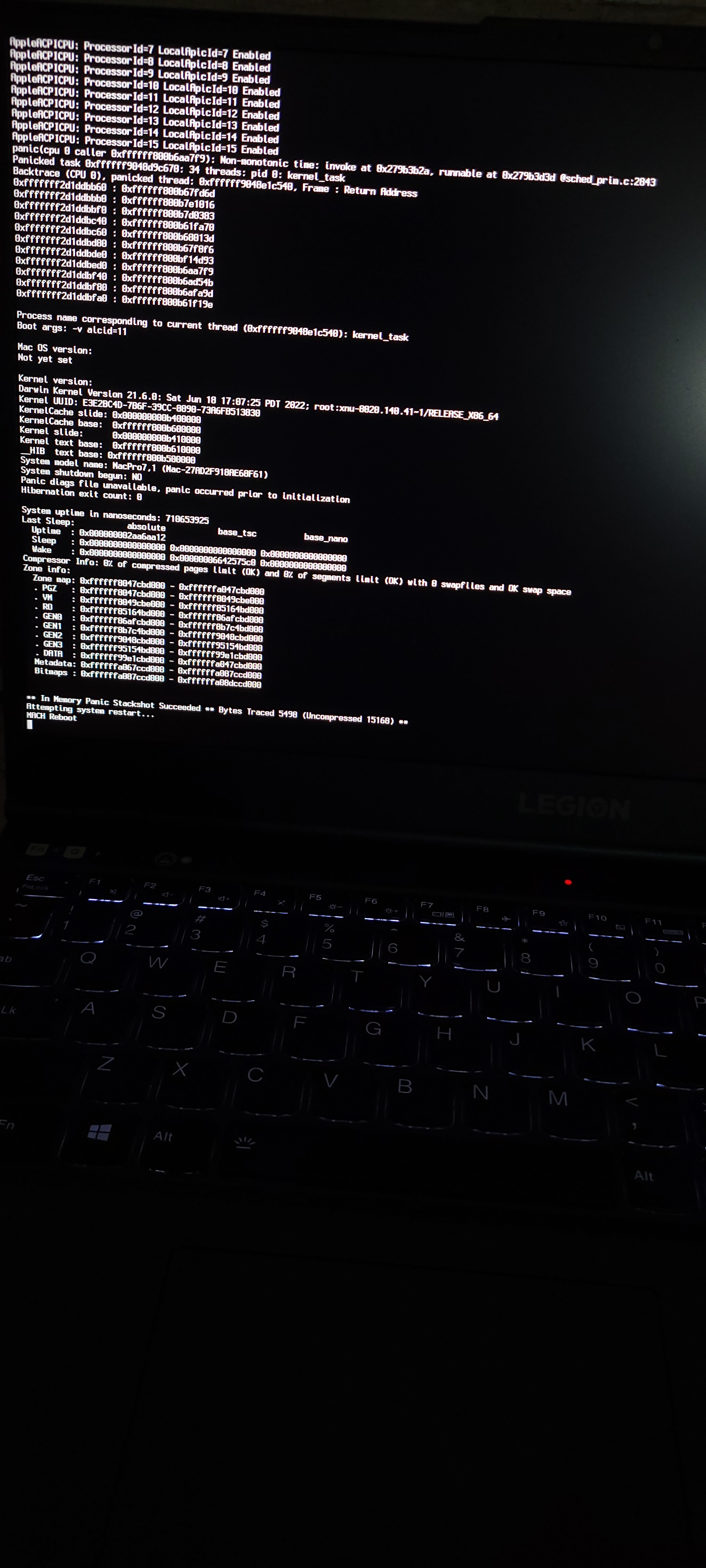

AMD Rayon R7 5800H Install Monterey kernel Panic

[zxc2689963]

Hello everyone, the Monterey kernel panic problem has been solved for AMD R7 5800H notebook installation. It is a great thing that the CPU can now run on 8 cores. Thank you guys very much.Thank them for discovering the problem and providing kernel patches @ExtremeX@Visual

Brand: Lenovo
Model: Legion 5 6th Gen
CPU: AMD Ryzen 7 5800h
GPU: AMD Radeon RX 6600m 8GB ( Separate GPU mode)
HDD: Samsung SSD 970 EVO Plus 1TB (1000 GB, PCI-E 3.0 x4)
WDS500G3X0C-00SJG0 (500 GB, PCI-E 3.0 x4)
Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC
Intel(R) Wi-Fi 6E AX210 160MHz
Ram: x2 8GB 3200mhz ddr4
Display: 15.6 1080p 165HZ

Updated October 5, 2023
Problems solved:
1. You do not need to disable XHCI
2. The microphone problem is rectified
3. Monitor brightness can be adjusted, only in Ventura

Unresolved issues:
Failure to wake from sleep



[Edhawk]

The IOReg's are identical regarding the CPU processors etc.
The rename patches didn't change anything in system, not that I can see.
They may have helped with the boot process, but that is unclear.
As the full 8-cores/16-threads were working already in Big Sur, this test tells us very little.

As we know the revised EFI works, can you try booting Monterey and see if it changes anything when booting the newer OS.



[Edhawk]

I have added another rename patch to the config.plist attached below. This patch is to rename the second M.2 drive from pci1cc1,5236 to DEV1.



Can you try booting with this config.plist and see if this changes how the second M.2 drive is defined in the IOReg.



[OG Nerd]

I have added another rename patch to the config.plist attached below. This patch is to rename the second M.2 drive from pci1cc1,5236 to DEV1.

View attachment 6674

Can you try booting with this config.plist and see if this changes how the second M.2 drive is defined in the IOReg.

Do this before or after trying to run the monterey installer?



[Edhawk]

Both?



[OG Nerd]

Both?

so far the monterey installer is a bust, it reboots when trying to run it from usb and same thing when downloading and upgrading from Big Sur. cannot get any screen info, reboot is too fast. I am going to try with the nvme rename because it seems to tank on the first reboot when it makes a partition for the upgrade.



[OG Nerd]

I have added another rename patch to the config.plist attached below. This patch is to rename the second M.2 drive from pci1cc1,5236 to DEV1.

View attachment 6674

Can you try booting with this config.plist and see if this changes how the second M.2 drive is defined in the IOReg.

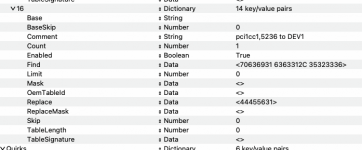

Trying to boot the new config plist results in an error OC: ACPI Patch 16 is borked, halting on critical error

Borked lol.



[styde]

Hi ! OpenCore 0.8.3 just coming out. Nothing about a TSC_ADJUST quirk. Im just wondering how USB ports could be operational on Lenovo Legion 5, waiting next OpenCore version.



[Middleman]

Hi ! OpenCore 0.8.3 just coming out. Nothing about a TSC_ADJUST quirk. Im just wondering how USB ports could be operational on Lenovo Legion 5, waiting next OpenCore version.

I made a discovery recently regarding the latest chipsets. I suspect there is USB4 support in macOS, but it can only be activated under Intel chipsets.

As for enabling the USB functionality on the Legion 5, a DSDT dump is probably the best way to do it, but may need comparing with existing Ryzen SSDT builds.
Ryzen builds like ones used on a B550 board typically need XHC/XHC0 renaming or PTXH to XHC2.



[OG Nerd]

Hi ! OpenCore 0.8.3 just coming out. Nothing about a TSC_ADJUST quirk. Im just wondering how USB ports could be operational on Lenovo Legion 5, waiting next OpenCore version.

I don’t think the tsc adjust is the issue as shaneee pointed out earlier. I myself have not had a chance to test 8.3 yet.



[zxc2689963]

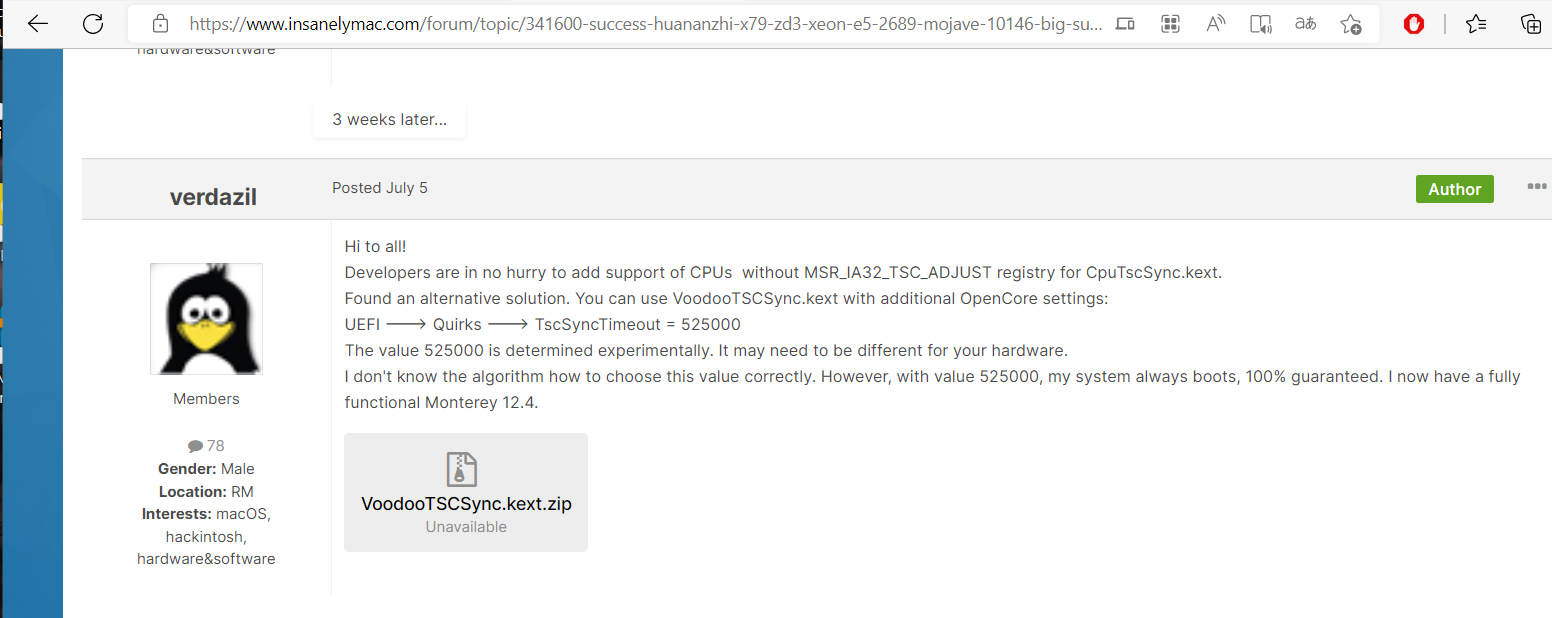

I saw this guy say this way can skip MSR_IA32_TSC_ADJUST. May be different hardware TscSyncTimeout data is not the same, found the whole network did not find the specific setting value, but this can skip AppleACPIPlatform caused by kernel panic, this computer can not install may be really caused by TSC synchronization

Reference:

[SUCCESS] HUANANZHI X79-ZD3 + Xeon E5-2689 [Mojave 10.14.6] [Big Sur 11.2.3] [Monterey 12.0.1] [Sonoma beta 7]

www.insanelymac.com

(Monterey?) AMD TSC-related kernel panic · Issue #1836 · acidanthera/bugtracker

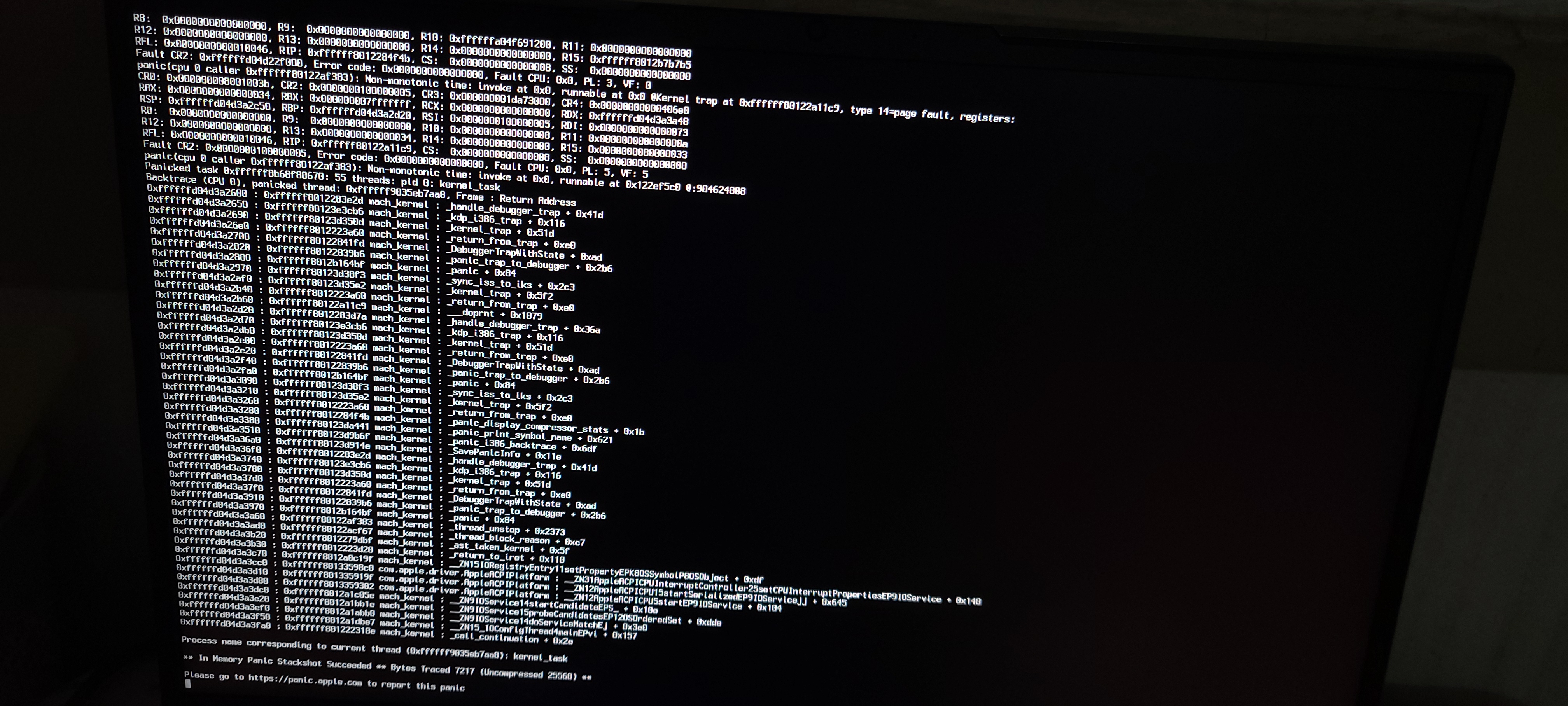

On some AMD systems, there seems to be a kernel panic like the following: panic(cpu 8 caller 0xffffff8016ecce23): Non-monotonic time: invoke at 0x2eb803709e, runnable at 0x2eb803756c @sched_prim.c:...

github.com



[styde]

From Linux, there is a recent patch for calculate a value for cpus without tsc_adjust and emulate this fonction.

[PATCH 1/3] x86/tsc: implement tsc=directsync for systems without IA32_TSC_ADJUST

lore.kernel.org



[OG Nerd]

I saw this guy say this way can skip MSR_IA32_TSC_ADJUST. May be different hardware TscSyncTimeout data is not the same, found the whole network did not find the specific setting value, but this can skip AppleACPIPlatform caused by kernel panic, this computer can not install may be really caused by TSC synchronization

Reference:

[SUCCESS] HUANANZHI X79-ZD3 + Xeon E5-2689 [Mojave 10.14.6] [Big Sur 11.2.3] [Monterey 12.0.1] [Sonoma beta 7]

www.insanelymac.com

(Monterey?) AMD TSC-related kernel panic · Issue #1836 · acidanthera/bugtracker

On some AMD systems, there seems to be a kernel panic like the following: panic(cpu 8 caller 0xffffff8016ecce23): Non-monotonic time: invoke at 0x2eb803709e, runnable at 0x2eb803756c @sched_prim.c:...

github.com

Have you tried this with the latest opencore build? I am still stuck with no progress myself.



[ExtremeXT]

Hi. I want to install Monterey on an AMD laptop (Legion 5 6th Gen with Ryzen 7 5800H and Radeon 6600M GPU). But the installation failed. There is a kernel panic during startup. I don't know what to do. Please help me find out what the problem is. thank you

Brand: Lenovo
Model: Legion 5 6th Gen
CPU: AMD Ryzen 7 5800h
GPU: AMD Radeon RX 6600m 8GB ( Separate GPU mode)
HDD: Samsung SSD 970 EVO Plus 1TB (1000 GB, PCI-E 3.0 x4)
WDS500G3X0C-00SJG0 (500 GB, PCI-E 3.0 x4)
Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC
Intel(R) Wi-Fi 6E AX210 160MHz
Ram: x2 8GB 3200mhz ddr4
Display: 15.6 1080p 165HZ

This is to install monterey12.3.1

For my laptop, the same AppleACPIPlatform panic was caused by incorrect processor definitions in my ACPI tables. If you can send me your DSDT, I can send an SSDT to try. SSDT-CPUR from Dortania doesn't work.



[OG Nerd]

For my laptop, the same AppleACPIPlatform panic was caused by incorrect processor definitions in my ACPI tables. If you can send me your DSDT, I can send an SSDT to try. SSDT-CPUR from Dortania doesn't work.

What model do you have?



[Middleman]

For my laptop, the same AppleACPIPlatform panic was caused by incorrect processor definitions in my ACPI tables. If you can send me your DSDT, I can send an SSDT to try. SSDT-CPUR from Dortania doesn't work.

Okay if your laptop is the same Lenovo Legion 5, I would suggest you try this. Use @Edhawk's EFI from his build here which has a new modified SSDT > https://forum.amd-osx.com/threads/a...monterey-kernel-panic.2725/page-26#post-20706

and add AppleMCEReporterDisabler.kext to the Kernel in config.plist and place the kext into EFI/OC/kexts.



[ExtremeXT]

@OG Nerd My laptop is an HP 15s-eq2027nq.

@Middleman I already got Monterey (12.6) and Ventura (13.0 Beta 7) working fine on my laptop, I was offering a patched SSDT-CPUR if anyone is stuck at the panic...



[OG Nerd]

@OG Nerd My laptop is an HP 15s-eq2027nq.

@Middleman I already got Monterey (12.6) and Ventura (13.0 Beta 7) working fine on my laptop, I was offering a patched SSDT-CPUR if anyone is stuck at the panic...

Yeah, we cannot get past the panic on the legion 5, would you mind posting your working efi so we coukd try the ssdt of yours?



[ExtremeXT]

Yeah, we cannot get past the panic on the legion 5, would you mind posting your working efi so we coukd try the ssdt of yours?

Send me your DSDT and I'll make the SSDT, dump it with SSDTTime.

If you can, send your EFI too.



[OG Nerd]

Send me your DSDT and I'll make the SSDT, dump it with SSDTTime.

If you can, send your EFI too.

Ok I will post it tomorrow when I get back. Thanks



[ExtremeXT]

@OG Nerd @zxc2689963 @styde

I found your DSDT (OG Nerd) at post #250, so I made an EFI with some stuff from your EFI at post #243. The main differences are:

# Added more SSDTs to fix ACPI problems:
- SSDT-CPUR - Fixes CPU Thread definitions - Credits to Amega
- SSDT-EC - Adds a fake EC (Embedded Controller) device for macOS to use
- SSDT-HPET - Disables Legacy IRQ devices which can cause problems in macOS - SSDT-HPET is created by SSDTTime but modifed by me to set the HPEN variable to True, credits to Amega
- SSDT-SBUS-MCHC - Fixes SMBus support
- SSDT-SPRT - Disables the unexistent Serial Ports defined in ACPI - Credits to Amega
- SSDT-USBX - Fixes USB Power Properties
- SSDT-XOSI - Enables ACPI features locked to Windows OSes by default


# Added more Kexts:
- AirportItlwm - Adds Intel Wi-Fi support - The Monterey versions is included - Only enabled on Monterey by default
- AMDRyzenCPUPowerManagement - Fixes Power Management for AMD systems
- AmdTscSync - Fixes TSC issues on AMD systems, especially on laptops - Has to be configured manually by modifying IOCPUNumber in AmdTscSync.kext\Contents\Info.plist to your number of threads - 1 (Already configured by me, set to 15)
- AppleALC - Patches AppleHDA to fix audio - Has to be configured manually for your codec, I set the layout to 11 as it was like that in your EFI
- AppleMCEReporterDisabler - Disables the AppleIntelMCEReporter kext which causes panics on Monterey and above - Only enabled on Monterey and above by default
- BlueToolFixup - Allows third party Bluetooth cards on Monterey and above - Only enabled on Monterey and above by default
- ECEnabler - Fixes EC readings over 8 bytes
- IntelBluetoothFirmware.kext - Injects the firmware for the Bluetooth card
- IntelBluetoothInjector - Alternative to BlueToolFixup for macOS Big Sur and under - Only enabled on macOS Big Sur and under by default
- IntelBTPatcher - Patches parts of the Bluetooth stack
- Lilu - The core kext that enables most of the other kexts
- NVMeFix - Fixes NVMe Power Management along with other things on non-Apple NVMe drives
- RadeonSensor - Provides temperatures for the dGPU
- RealtekRTL8111 - Adds support for Realtek LAN
- RestrictEvents - Blocks unwanted processes causing compatibility issues on different hardware
- SMCAMDProcessor - Companion to AMDRyzenCPUPowerManagement
- SMCBatteryManager - Enables battery readings
- SMCRadeonGPU - Companion to RadeonSensor
- USBToolBox - Companion to UTBMap
- UTBMap - USB map - This kext was gotten from your EFI folder
- VirtualSMC - Emulates a fake SMC for macOS to use
- VoodooPS2Controller - Adds support for PS/2 devices like the internal keyboard
- WhateverGreen - Various Graphics patches

# Updated to OpenCore 0.8.4 with the latest Kexts and AMD Kernel Patches

# Cleaned the EFI:

- Remove useless Sample.plist values
- Remove bogus OpenCore Configurator (OCC) values
- Remove useless Kexts

# Disabled XhciPortLimit which breaks USB on 11.3+ along with other USB fixes

# Enabled Apple Secure Boot and added more debug/panic stuff

# Removed the cpus=1 boot argument

# Changed SMBIOS to MacBookPro15,4 for better compatibility

Notes:

- Please, do NOT edit this EFI with OpenCore Configurator (OCC), OpenCore Auxiliary Tools (OCAT) or any other tool like this. Use ProperTree. The configurators add bogus values and can sometimes corrupt the plist.
- This EFI should be able to boot Big Sur, Monterey and Ventura.
- Before using this EFI, make sure you're on the latest BIOS version.
- I would also recommend an NVRAM Reset before using this EFI.
- Do not connect to your Apple ID, it's not set-up for that and it might get you banned.

Anyone with this laptop model can try it.

Good luck!
