Unable to change install Language

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Sorry, I must have done something stupid with the OC 0.8.2 folder, as it should work.

This is a copy of my 0.8.1 OC folder, with the Serial etc. removed and it has been set to run Catalina. Try this EFI 0.8.1 FX folder instead, it was copied from my AMD USB pen drive, so I know it works on my FX system. As before just add your Serial etc and it should work.


Attachments

  • EFI 0.8.1 FX.zip
    4 MB · Views: 6

DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
OK Ed, thanks for your time..!!


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
Something is wrong because i'm still getting a black screen


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Are you using OC in Legacy Mode? Where you have a Boot file alongside the EFI folder. So the Boot file is found and this brings the EFI folder settings in to play.


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
No im not, should I be? I just have the EFI folder in the EFI partition of the USB Drive.


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
No, I was just checking that you weren't using legacy mode. As that was the only thing that came to mind when you said you still had the black screen.


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
When you press the F8 key to bring up the Boot Menu, are you selecting the UEFI partition on the USB?


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
Yes I am


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
Would it be beneficial to try a OpenCore debug EFI.?


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Maybe? I never use the Debug version.


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72

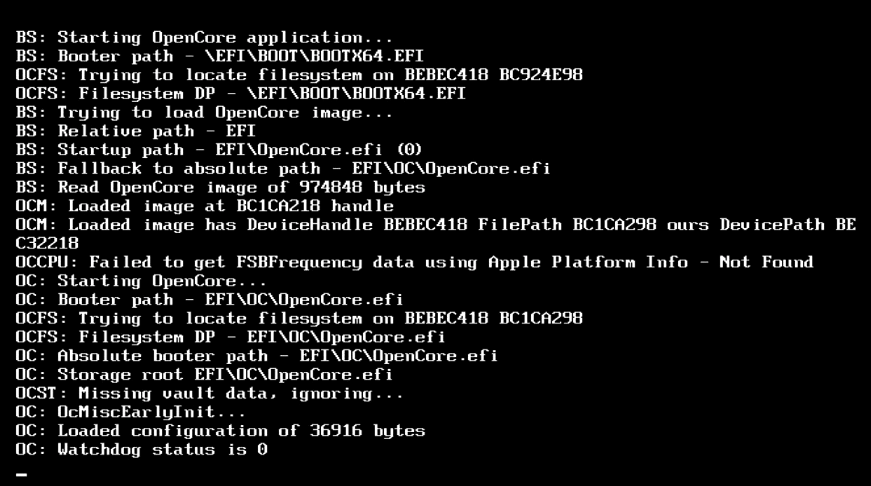

So I tried the Debug EFI even though I've never used it before and on booting the system up I get this text as seen in the ScreenShot....



Does anyone make any sense of it as im stuck..


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Post a copy of the Debug EFI you created. So we can see what you are using.


DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
Here you go.. Thanks


Attachments

  • Archive.zip
    4.3 MB · Views: 2

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Try this EFI I have made the following changes:
  • Replaced SSDT-EC-USBX-AMD.aml with SSDT-EC.aml & SSDT-USBX.aml
  • Removed GenericUSBXHCI.kext
  • Changed config.plist to match above changes.
  • Set DisableWatchdog quirk as True.
  • Checked the rest of the config.plist, all seems to be correct for an FX AMD system.
You just need to add your Serial Number etc to the config before you use it.


Attachments

  • EFI.zip
    4.2 MB · Views: 3

DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72

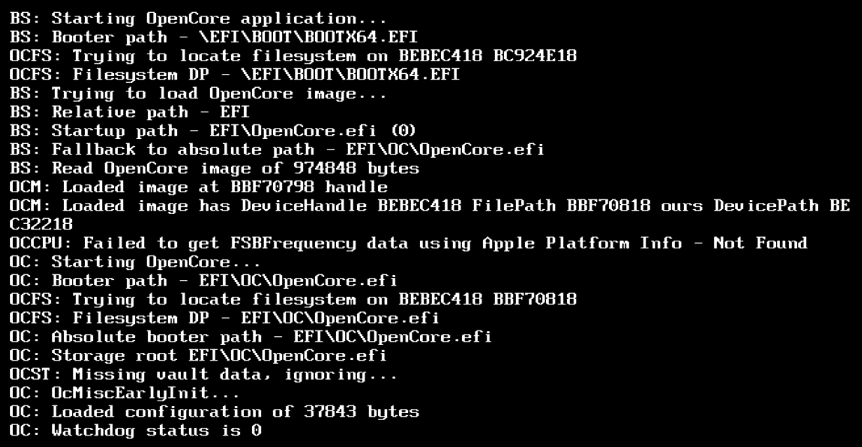

Hi, just tried your new EFI and still stuck on what looks like the Debug screen..



DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
I made a mistake, I forgot to replace the Debug files with the ones from the Release version. Once I replaced the files I get the black screen again.
to rule out error by me is it possible to rebuild that Latest EFI with out my Debug files please


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Yes, I can rebuild using the latest release 0.8.3.

Remind me, which Display connector are you using from the GTX 760?


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
New EFI based on OpenCore 0.8.3.


Attachments

  • EFI-0.8.3.zip
    3.9 MB · Views: 2

DAFFY

Member
AMD OS X Member
Joined
May 12, 2020
Messages
72
Hi Ed, Thanks for the upload.
I'm using the HDMI connector..


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
2,261
Do you have the option to connect via DP or DVI? If so try them instead of the HDMI, as the later can be a bit funky with macOS. Black Screen issues are more common with HDMI than the other two types pf display connector.

Display Adapters are to be avoided if at all possible, as they need to be Active adapters to convert the display signal to HDMI.
