Unable to change install Language

DAFFY

Member
Joined
May 12, 2020
Messages
57
Hi Ed, I still can't get any further with your 081 EFI you sent so I'm Back to the 0.6.1 EFI I have which reboots on 2 minutes remaining on the first install screen. Prior to the pick list showing I get 5 lines

OCS: No schema for ForceSecureBootScheme at 15 index, context <Quirks>!
OCS: No schema for SystemUUID at 5 index, context <PlatformNVRAM>!
OCS: No schema for CustomMemory at 9 index, context <PlatformInfo>!
OCS: No schema for Memory at 10 index, context <PlatformInfo>!
OCS: No schema for ForceResolution at 3 index, context <Output>!

Could they be a reason why my installer reboots on 2 minutes remaining.... Thanks


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
The 5 lines are 5 errors in the config.plist.

This isn't the EFI I provided in post #17, is it?

Post a copy of the EFI you are using and I will have a look to see what is happening. Just remember to remove your serial number from the config before posting a copy here.


DAFFY

Member
Joined
May 12, 2020
Messages
57
Cheers Ed, Here you go. No this isn't the EFI you provided


Attachments

  • EFI.zip
    2.4 MB · Views: 4

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
Try this revised OC 0.6.2 EFI folder.
  • I replaced the config.plist with a copy of the Sample.plist from OC 0.6.2, so all the missing entries are now in place.
  • I removed some duplicate SSDT's
  • I removed some unnecessary Drivers, those that are incorporated in to OpenCore.
  • I removed two unnecessary kexts, USB related, which only work on Intel systems.
  • You need to add your MLB, ROM, Serial Number and SystemUUID to the PlatformInfo section in the config.plist.
DO NOT CHANGE OR ADD ANYTHING ELSE!

Boot with this EFI and see what happens. Take a photo of the verbose text if it KP's.


Attachments

  • EFI.zip
    4.5 MB · Views: 7

DAFFY

Member
Joined
May 12, 2020
Messages
57
HI ED, just tried that EFI and I get stuck on [EB #LOG:LOG:EXITBS ; START] 2022-07-27T19:14:41


DAFFY

Member
Joined
May 12, 2020
Messages
57

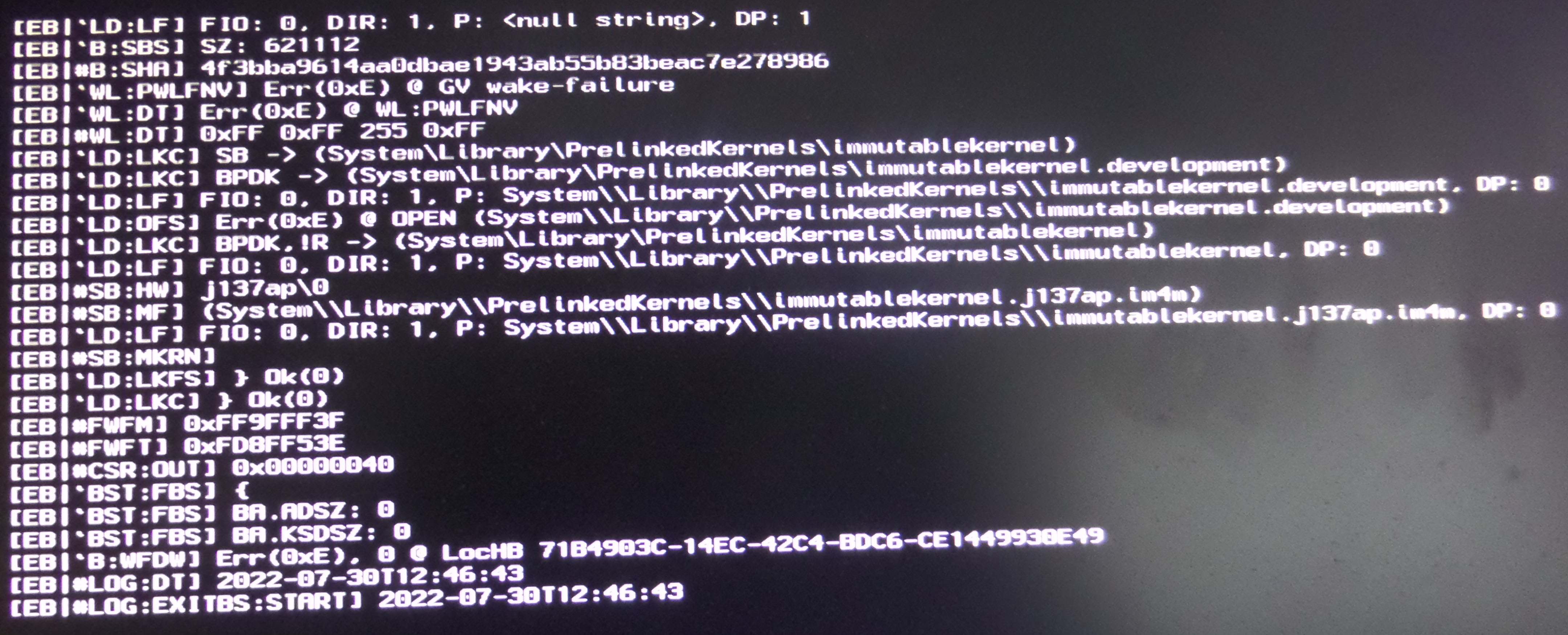

So im Stil stuck on the line [EB #LOG:LOG:EXITBS ; START] I've looked at the dortania troubleshooting guide and I cant see anything wrong in the config.plist. I haven't changed anything in the EFI as mentioned, here's a screenshot


Last edited:

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
I will have a look at this later when I am on my Hack. There are a number of issues that can cause this KP, we just need to work out which one is the cause and edit the setup accordingly.


DAFFY

Member
Joined
May 12, 2020
Messages
57
Hi Ed, also just noticed this message now prior to the pick list on this revised 0.6.2 EFI you recently sent..



Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
That is one of the things I was going to look at, as the system not having the SSDT-EC table is a common cause for the KP you are seeing.

I'll edit the EFI and post a revised copy shortly.


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
Here is a revised EFI based on OpenCore 0.8.2.

You need to rename the 'EFI 082' folder to 'EFI' and add your SMBIOS data to the config.plist. The rest should be fine.

It is based on the EFI I am using with my FX 8350/9900FX system.

See if this works any better.

Edit: I forgot to add HfsPlus.efi to the /EFI/OC/Drivers folder and config.plist, fixed in this EFI 082 2 folder.


Attachments

  • EFI 082 2.zip
    6.6 MB · Views: 2

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
I went back and looked at the old OC folder I had of yours from Hackintosh.com site. I have added the SSDT-EC.aml that was generated using your system DSDT.aml and SSDTTime script, plus a separate SSDT-USBX.aml table. Both have been added in place of the SSDT-EC-USBX.aml table in this v3 EFI.

Use this EFI not the one above.


Attachments

  • EFI 082 v3.zip
    6.6 MB · Views: 2

Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
Did the Clean snapshot of the wrong OC folder!

Try this EFI v4


Attachments

  • EFI 082 v4.zip
    6.6 MB · Views: 2
