AMD Rayon R7 5800H Install Monterey kernel Panic

[zxc2689963]

Hello everyone, the Monterey kernel panic problem has been solved for AMD R7 5800H notebook installation. It is a great thing that the CPU can now run on 8 cores. Thank you guys very much.Thank them for discovering the problem and providing kernel patches @ExtremeX@Visual

Brand: Lenovo
Model: Legion 5 6th Gen
CPU: AMD Ryzen 7 5800h
GPU: AMD Radeon RX 6600m 8GB ( Separate GPU mode)
HDD: Samsung SSD 970 EVO Plus 1TB (1000 GB, PCI-E 3.0 x4)
WDS500G3X0C-00SJG0 (500 GB, PCI-E 3.0 x4)
Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC
Intel(R) Wi-Fi 6E AX210 160MHz
Ram: x2 8GB 3200mhz ddr4
Display: 15.6 1080p 165HZ

Updated October 5, 2023
Problems solved:
1. You do not need to disable XHCI
2. The microphone problem is rectified
3. Monitor brightness can be adjusted, only in Ventura

Unresolved issues:
Failure to wake from sleep



[Middleman]

Haven't used clover in a long time. Don't tell me how?

Can you run DPCIManager in macOS? You can dump the DSDT with that.

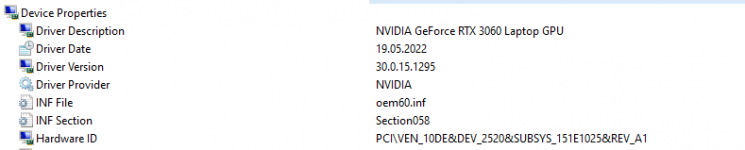

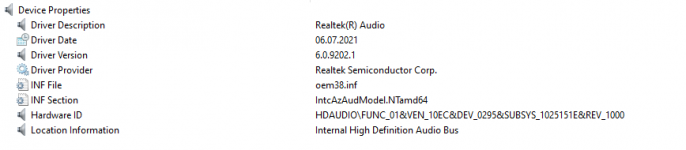

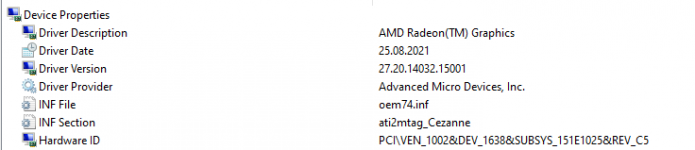

Also if you have Windows, see if you can make a note of the hardware ids in Device Manager,
mainly for the GPUs and/or audio codec. Also name the codec if you can.
A check for the WiFi and BT (if they are Intel or Broadcom) is also needed.



[lev12354]

Can you run DPCIManager in macOS? You can dump the DSDT with that.
Also if you have Windows, see if you can make a note of the hardware ids in Device Manager,
mainly for the GPUs and/or audio codec. Also name the codec if you can.
A check for the WiFi and BT (if they are Intel or Broadcom) is also needed.

Mac os not installed
wifi module from mediatek



[Middleman]

Mac os not installed
wifi module from mediatek

Okay that looks good. Let's see what we can do now.
We'll need to look at that DSDT as well.



[lev12354]

Okay that looks good. Let's see what we can do now.
We'll need to look at that DSDT as well.

I understand this perfectly, but how to extract them?



[Middleman]

I understand this perfectly, but how to extract them?

Use DCPIManager. It has a function to extract the BIOS DSDT.



[lev12354]

Use DCPIManager. It has a function to extract the BIOS DSDT.

But as? Should I put it in the clover's kext folder and then let's run the Mac OS installer?



[Middleman]

But as? Should I put it in the clover's kext folder and then let's run the Mac OS installer?

No, not recommended. Clover is a bit more tricky to install nowadays. It doesn't have the better functions like OC.



[lev12354]

No, not recommended. Clover is a bit more tricky to install nowadays. It doesn't have the better functions like OC.

I don't quite understand what is required of me. That is, I need to install Mac OS on my laptop now and open this application in it? If yes, then how, I really can’t run the installer on opencore, not to mention the installed system on this laptop



[OG Nerd]

Alright so I've gone and made the changes to the files.
Give these SSDTs a try.

OK, I removed SSDT-USBX from ACPI and added both of your patches, then tried all combinations with with & without USBtoolbox, UTBmap, Usbinjectall, GenericUSBXHCI and there was no change, no ports worked. One thing I did notice is that if I disabled GenericUSBXHCI.kext, it would hang at the picture below. I also attached the EFI that I have been using. If I re-enable GenericUSBXHCI.kext, it boots, but still with no USB.



[OG Nerd]

I don't quite understand what is required of me. That is, I need to install Mac OS on my laptop now and open this application in it? If yes, then how, I really can’t run the installer on opencore, not to mention the installed system on this laptop

I believe you can use SSDTTime in windows to get your DSDT Dump.... here is a link tho that site with info on how to do it.

https://github.com/corpnewt/SSDTTime



[lev12354]

No, not recommended. Clover is a bit more tricky to install nowadays. It doesn't have the better functions like OC.



[Middleman]

Do you also have any other files aside from the DSDT?



[lev12354]

Do you also have any other files aside from the DSDT?

Did it via ssdttime

No other files



[Middleman]

OK, I removed SSDT-USBX from ACPI and added both of your patches, then tried all combinations with with & without USBtoolbox, UTBmap, Usbinjectall, GenericUSBXHCI and there was no change, no ports worked. One thing I did notice is that if I disabled GenericUSBXHCI.kext, it would hang at the picture below. I also attached the EFI that I have been using. If I re-enable GenericUSBXHCI.kext, it boots, but still with no USB.


View attachment 6168

No, you're meant to leave the SSDT-USBX in there as well along with the SSDT-EC and the two XHC files I gave you plus the USBMap or USBInjectall.



[Middleman]

Did it via ssdttime

No other files

I think you'll need to look at creating a Clover version of the boot stick. It will be purely for the BIOS dump (as it provides more info).
Just need to check for some things before I go make the EFI.



[OG Nerd]

No, you're meant to leave the SSDT-USBX in there as well along with the SSDT-EC and the two XHC files I gave you plus the USBMap or USBInjectall.

I removed the SSDT-USBX.aml patch and installed both yours instead, do I need to keep SSDT-USBX.aml as well?

For the heck of it I added SSDT-USBX.aml back and it took out the m.2 intel wireless and no USB ports so I disabled and removed it again.



[lev12354]

I think you'll need to look at creating a Clover version of the boot stick. It will be purely for the BIOS dump (as it provides more info).
Just need to check for some things before I go make the EFI.



[Middleman]

I removed the SSDT-USBX.aml patch and installed both yours instead, do I need to keep SSDT-USBX.aml as well?

For the heck of it I added SSDT-USBX.aml back and it took out the m.2 intel wireless and no USB ports so I disabled and removed it again.

You may have to search online for a solution on that in that case. But judging by the look of things, they should both be correct, esp. the first XHC file.



[Middleman]

Thanks for this, I'll be looking at it tomorrow for you.



[Middleman]

@lev12345

Thanks for this, I'll be looking at it tomorrow for you.

@lev12345

I want to ask - when you made the Clover test boot drive did you put in the SSDTs that we made in this thread inside the ACPI ?
Because (according to the files I received) that's what seems like it, as I can see our processor and XHC renames in the column and top.
So I really need more of a 'raw' output of the SSDTs to get a better idea. If that's the case you'll need to remove any SSDT.amls found
inside the ACPI folder and try to dump the BIOS again. Clover should boot into the main screen without any issues.
