[Log:Exitibs:Start] 2022-06014t21:39:19

[Haza]

Hi!
I use an open core 0.6.1.
So when trying to install mac os, big sure stops at [Log:Exit is:Start] 2022-06014t21:39:19 and freezes, maybe someone has encountered such a problem?

I'll attach the photos
CPU: Athlon 3000g
RAM: Samsung 3x4 12 gb
Motherboard: Msi b450m pro vfh max



[Middleman]

I tried to add this kexts, but the program did not find it, I reset the config and tried again, but the program again did not find it again

Did you unzip the file first?



[Haza]

Did you unzip the file first?

yes



[Middleman]

M

yes

Which program are you using your edit the config files?



[Haza]

M


Which program are you using your edit the config files?

PropertyTree



[Middleman]

PropertyTree

Ok. It doesn't detect the kexts. It is just a Plist editor. You have to manually add in the entry and tables yourself.

The easiest way to do this is using your mouse, simply copy the previous item row under Kernel > Add (press right click and copy) and then paste the line over that row. It will then paste below that item, creating a new item field. You then just rename the new item field path as CpuTscSync.kext and also rename whichever other details that need correcting in that row, including making sure the Enable section is set to YES. Then save the file and reboot the system.



[Haza]

Ok. It doesn't detect the kexts. It is just a Plist editor. You have to manually add in the entry and tables yourself.

The easiest way to do this is using your mouse, simply copy the previous item row under Kernel > Add (press right click and copy) and then paste the line over that row. It will then paste below that item, creating a new item field. You then just rename the new item field path as CpuTscSync.kext and also rename whichever other details that need correcting in that row, including making sure the Enable section is set to YES. Then save the file and reboot the system.

To be honest I didn't understand anything



[Middleman]

To be honest I didn't understand anything

Okay what's the platform you're working with to edit the files? Is it Windows or Mac?
If you have Propertree open can you please open up your config.plist in Propertree that is on your USB bootstick?



[Haza]

Okay what's the platform you're working with to edit the files? Is it Windows or Mac?
If you have Propertree open can you please open up your config.plist in Propertree that is on your USB bootstick?

I edit the file and I work on Windows



[Middleman]

I edit the file and I work on Windows

Then that should be easy.
What you need to do is open the file in Propertree (go to File > Open > EFI partition > EFI > OC > config.plist

Then in Propertree scroll down go to Kernel > Add section and underneath, select the last row (item no. 25) in that list and underneath that right-click on the row and select 'New sibling of 25'. A new item number of 26 will appear beneath it like this:



You'll notice on item 26 the Type says 'String'. You must highlight it and change it to Dictionary, like this:



Once that is done, simply highlight each of the lines under item 25 starting with Arch, and copy and paste
all the lines below that over to item 26 like this (you can use the Control + C & V keys) :



Once finished it should look llke this:



Then go and highlight BundlePath and change the name to CpuTscSync.kext and go to File > Save to save the file.
Since Enabled is set to True for the kext it means it is active on the list. That's how you edit and use the config.plist.



[Haza]

thank you I have collected the config just in case I will give it to you for verification

Then that should be easy.
What you need to do is open the file in Propertree (go to File > Open > EFI partition > EFI > OC > config.plist

Then in Propertree scroll down go to Kernel > Add section and underneath, select the last row (item no. 25) in that list and underneath that right-click on the row and select 'New sibling of 25'. A new item number of 26 will appear beneath it like this:

View attachment 6149

You'll notice on item 26 the Type says 'String'. You must highlight it and change it to Dictionary, like this:

View attachment 6150

Once that is done, simply highlight each of the lines under item 25 starting with Arch, and copy and paste
all the lines below that over to item 26 like this (you can use the Control + C & V keys) :

View attachment 6151

Once finished it should look llke this:

View attachment 6152

Then go and highlight BundlePath and change the name to CpuTscSync.kext and go to File > Save to save the file.
Since Enabled is set to True for the kext it means it is active on the list. That's how you edit and use the config.plist.



[Haza]

Then that should be easy.
What you need to do is open the file in Propertree (go to File > Open > EFI partition > EFI > OC > config.plist

Then in Propertree scroll down go to Kernel > Add section and underneath, select the last row (item no. 25) in that list and underneath that right-click on the row and select 'New sibling of 25'. A new item number of 26 will appear beneath it like this:

View attachment 6149

You'll notice on item 26 the Type says 'String'. You must highlight it and change it to Dictionary, like this:

View attachment 6150

Once that is done, simply highlight each of the lines under item 25 starting with Arch, and copy and paste
all the lines below that over to item 26 like this (you can use the Control + C & V keys) :

View attachment 6151

Once finished it should look llke this:

View attachment 6152

Then go and highlight BundlePath and change the name to CpuTscSync.kext and go to File > Save to save the file.
Since Enabled is set to True for the kext it means it is active on the list. That's how you edit and use the config.plist.

I 'm also interested in this other kexts have one folder and a file and CpuTscSync 2 folders a lot of files, is this how it should be ?



[Middleman]

I 'm also interested in this other kexts have one folder and a file and CpuTscSync 2 folders a lot of files, is this how it should be ?

What do you mean? You should only have downloaded one file only, and that is CpuTscSync.kext and placed it into EFI/OC/Kexts



[Haza]

What do you mean? You should only have downloaded one file only, and that is CpuTscSync.kext and placed it into EFI/OC/Kexts

But you dropped the link and there is no such file there



[craighazan]

@Haza, I want you to try something, I'm not going to guarantee it will work but it worked for me. Enable CSM in BIOS and reboot. I know Dortania says disable it, but on my A320I-K I have in enabled and it boots.



[Middleman]

But you dropped the link and there is no such file there

Yes. It is inside the EFI file on the site. You can actually navigate to the EFI/OC/Kexts folder on Github and actually save the kext file. If you can’t then just download the EFI zip using the green Code button and retrieve it from that.



[Haza]

@Haza, I want you to try something, I'm not going to guarantee it will work but it worked for me. Enable CSM in BIOS and reboot. I know Dortania says disable it, but on my A320I-K I have in enabled and it boots.

I've already tried the memory panic remains the same



[Haza]

OK I found this kexts now I'll try it

Yes. It is inside the EFI file on the site. You can actually navigate to the EFI/OC/Kexts folder on Github and actually save the kext file. If you can’t then just download the EFI zip using the green Code button and retrieve it from that.



[Haza]

Yes. It is inside the EFI file on the site. You can actually navigate to the EFI/OC/Kexts folder on Github and actually save the kext file. If you can’t then just download the EFI zip using the green Code button and retrieve it from that.

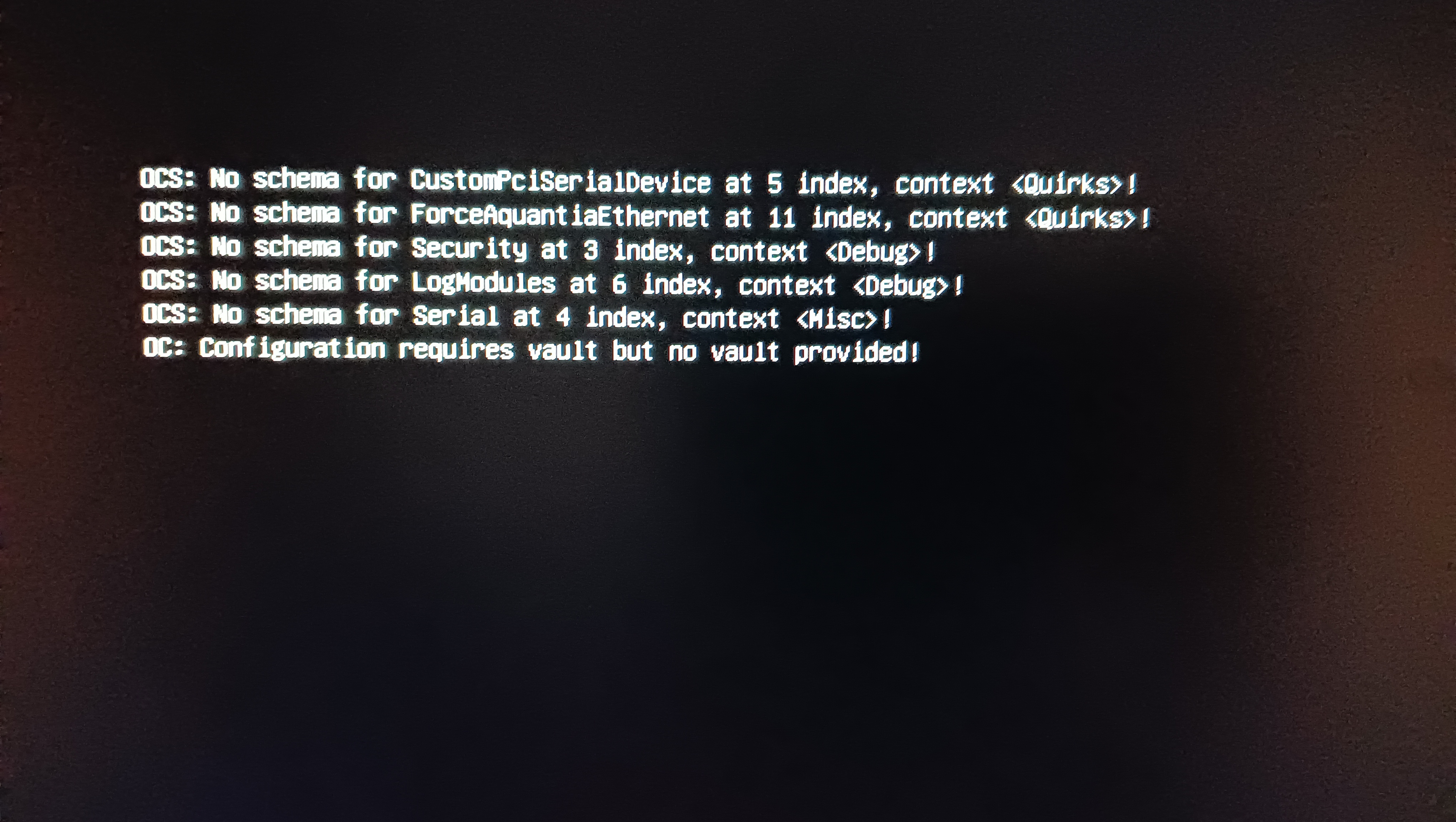

In general, now the opencore is not loaded here is a photo:



[Middleman]

In general, now the opencore is not loaded here is a photo:

Did you use the config.plist that I gave you before? If not hang on...



[Haza]

Did you use the config.plist that I gave you before? If not hang on...

I used your config but after adding CpuTscSync it freezes
