Ryzen 5600 B450 Kernel Panic in IONVMEController and B550 MSI Bazooka Issues

[stotes]

Gigabyte B450 I AORUS PRO WIFI​

Ryzen 5600G
RX5600X GPU
Samsung 970 EVO Plus ( Most recent Firmware)

Followed this guide https://github.com/mikigal/ryzen-hackintosh

Mapped my USB Drives

Am having a kernel panic

Any help would be most appreciated!



[Shaneee]

You had missed the core_count kernel patch for Monterey. Should work now.



[stotes]

Thank you! That sorted it out.Not sure how I missed that



[stotes]

Hi @Shaneee, sorry to dig up this old post. I recently upgraded from 6 core 5600 to a 12 core 5900x and followed your helpful guide https://forum.amd-osx.com/index.php?threads/new-amd-macos-corecount-patch-information.1948/ to change the core counts on the three sections of Kernel -> Patch. However I'm not having any luck booting opencore past the ACPI CPU configuration.

Is there any chance you could have a look at my plist to make sure I haven't done something wrong?



[Shaneee]

Remove the SSDT-CPUR.aml file from your config. This is for B550 boards and most likely causing the issue. @stotes



[stotes]

Remove the SSDT-CPUR.aml file from your config. This is for B550 boards and most likely causing the issue. @stotes

Thanks for the reply.

I have a MSI B550 Bazooka motherboard.

I'll attempt removing the CPUR and see if that helps.



[Shaneee]

Ahh ok didn't know, topic title is B450. In that case keep it there. The issue is MSI on Monterey.



[stotes]

Ahh ok didn't know, topic title is B450. In that case keep it there. The issue is MSI on Monterey.

Sorry I should have made a new topic. I upgraded to the B550 a few weeks ago and had no issues until I upgraded the CPU yesterday.
Strange that it was working with the 5600 and not the 5900x



[Shaneee]

With the same MSI board on Monterey? That is strange. Did you try to clear the NVRAM after updating the CPU and config changes?



[stotes]

With the same MSI board on Monterey? That is strange. Did you try to clear the NVRAM after updating the CPU and config changes?

Yes the same board, had no issues before.

I have tried clearing the NVRAM.

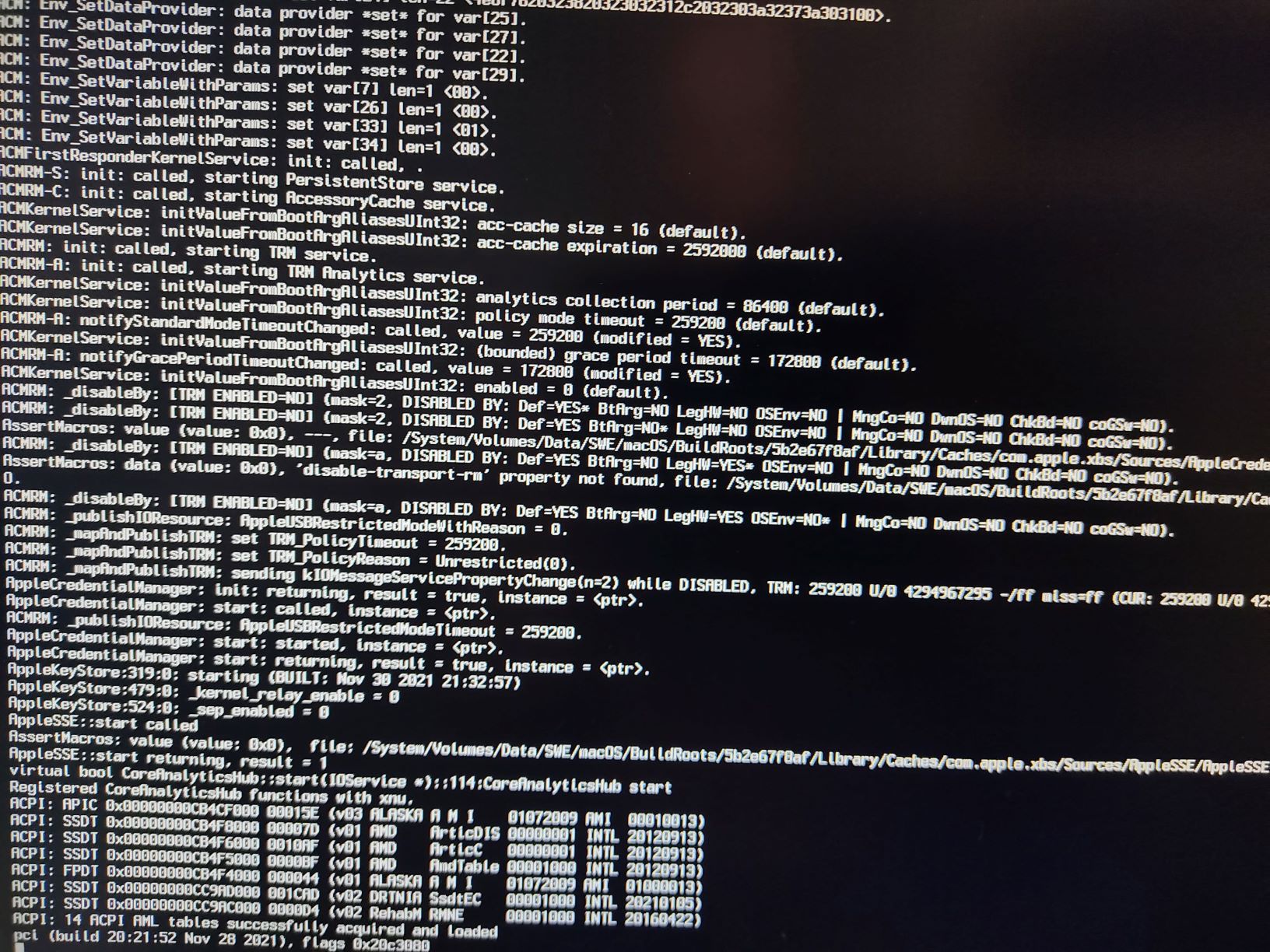

I just tried without the CPUR AML file, no luck just gets stuck here



I just remapped the USBPorts and will try again with the CPURAML



[stotes]

No luck. Same issue.



[Shaneee]

Is Above4G still set in the BIOS? Also try removing the vsmcgen=1 arg.



[stotes]

Is Above4G still set in the BIOS? Also try removing the vsmcgen=1 arg.

It wasn't enabled which is odd because it worked before without Above4G running 5600.
Removing vsmcgen=1 failed as soon as it gets through ACPI.

With Above4G enabled, ResizeBar disabled, vsmcgen=1 it gets further however fails after

AppleUSBXHCIPCIO: AppleUSBXHCIPCI::start: failed to create interruptSource

Below is an OCR of a photo taken when it fails.

com.apple.Apple
com.apple.AppleFSCompression TypeZlib Load succeeded
calling mpo_policy_init for ASP calling mpo_policy_initbsd for ASP
RSP: NVRAM pointer initialized
ASP: No recovery key set
Security policy Loaded: Apple System Policy (ASP)
rooting via boot-uuid from /chosen: F088E05E-FC86-4913-97A1-7AD0693B6D1E Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
AppleFileSystemDriver: using apfs-preboot-uuid
[ PCI configuration end, bridges 11, devices 30 1 AMDCPUSupport::getPCIService: succeed!
kunc_alert O
AMDCPUSupport::start, Physical Count: 12, Logical Count 24. initialize serviceSMCAMDProcessor: inited, registering Virtual SHC keys...
AMDCPUSupport::startWorkLoop setting up timerAMDCPUSupport::startWorkLoop AMDCPUSupport: got vsmc notification
AMDCPUSupport: submitted plugin
AMDCPUSupport::setupkeysVsmc: VirtualSMCAPI::addKey succeed!.
Previous shutdown cause: 5
DSMOS has arrived
Lilu
dev: @ found dead pci device GFXO
Lilu
dev: @ found dead pci device GFXB
virtual bool IONVMeController::start (IOService *)::775: IONVMeController::start
AppleNVMe Assert failed: les !=nullptr file: /Systen/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/IONVMeCom AppleNVMe Assert failed: (8 = data) Release IDNode file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMe Family/IONVMeFamily-640/Com
AppleNVMe Assert failed: (0 = data Release IDNode file: /System/Volumes/Data/SWE/macOS/BulldRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Com AppleNVMe Assert failed: 0= (status) Exit file: /System/Volumes/Data/SWE/macOS/Bul LdRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/IONV AppleNVMe Assert failed: (CAP != KNVMe InvalidRegisterValue64 ) ErrorExit file: /System/Volumes/Data/SWE/macOS/BuildRoots/Sb2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily
AppleNVMe Assert failed: 8 == (status) ErrorExit file: /System/Volumes/Data/SWE/macOS/BulldRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/
AppleNVMe Assert failed: result UninitPCI file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/IONVMeC


000033.031912 AppleUSBXHCIPCIO: AppleUSBXHCIPCI::start: failed to create interruptSource [0]



Still waiting for root device virtual bool IONVMeController::start (IOService *): :775: IONVMeController::start
AppleNVMe Assert failed: les = nullptr file: /System/Volumes/Data/SWE/macOS/BulldRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/IONVMeCon
AppleNVMe Assert failed: ( 0 != data) Release IDNode file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Com
AppleNVMe Assert failed: (8 = data ) Release IDNode file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Com AppleNVMe Assert failed: 8 == (status) Exit file: /System/Volumes/Data/SWE/macOS/BulldRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Comman/IONVM AppleNVMe Assert failed: (CAP != kNVMe InvalidRegisterValue64) ErrorExit file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily
AppleNVMe Assert failed: 8 == (status) ErrorExit file: /System/Volumes/Data/SWE/macOS/BulldRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-648/Common/
AppleNVMe Assert failed: result UninitPCI file: /System/Volumes/Data/SWE/macOS/BuildRoots/5b2e67f8af/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-640/Common/IONVMeCo [RealtekRTL81111: RxPoll support enabled.
[Realtek RTL81111: TCP/IPv4 segmentation offload enabled.
[RealtekRTL81111: TCP/IPv6 segmentation offload enabled.
[RealtekRTL81111: TCP/IPv6 checksum offload enabled.
[Realtek RTL81111: Version 2.4.2 using interrupt mitigate value 8x5f51. Please don't support tonymacx86.com! [RealtekRTL81111: PCI power management unsupported.
000080.179748 PRT5060500000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x2109/0812/9101 (USB3.0 Hub 000081.194585 PRT2060200808: Apple USBHostPort::forcePowerGated: KPowerStateOn: completed with Ox00000000 after 2255ms > at 5 Gbps
000081.194594 PRT1060100000: Apple USBHostPort::forcePowerGated: kPowerStateOn: completed with Oxe00082d6 after 2255ms 000081.194596 PRT4060400000: Apple USBHostPort::forcePowerGated: KPowerStateOn: completed with Oxe00002d6 after 2255ms 000081.194595 PRT3068300000: Apple USBHostPort::forcePowerGated: kPowerStateOn: completed with Oxe00082d6 after 2255ms
unknown chip version (7c800000)
000081.401984 PRT1060100000: Apple USBHostPort::enumerateDeviceComplete_block_invoke: enumerated Ox2109/2812/9100 (USB2.0 Hub unknown chip version (7c800000) > at 488 Mbps
080881.832056 PRT2060280008: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated Ox046d/c337/0214 (Gaming Keyboard G810) at 12 Mbps IOUSBHost Interface (0x10880035c): matching deferred by IOUSBHostHIDDevice 000081.934617 AppleUSB30HubPort068530008: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 0x2109/0812/9101 (USB3.0 Hub
000081.943829 AppleUSB38HubPort060510000: AppleUSBHostPort::enumerateDeviceComplete block_invoke: enumerated Ox0424/5734/0136 (USB5734) at 5 Gbps
) at 5 Gbps
000081.944258 AppleUSB30HubPort060540000: Apple USBHostPort::enumerateDeviceComplete_block_Invoke: enumerated Ox17e9/4307/4394 (Displaylink usb display) at 5 Gbps
000082.087228 AppleUSB20HubPort060110000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 8x8424/2734/0136 (USB2734) at 480 Mbps
000082.189485 AppleUSB20HubPort@60130008: AppleUSBHostPort::enumerateDeviceComplete block_invoke: enumerated 0x2109/2812/9100 (USB2.0 Hub 000082.194651 AppleUSBNCMData::start: result 1 > at 480 Mbps
000082.635015 AppleUSB20HubPort060134008: Apple USBHostPort::enumerateDeviceComplete block_invoke: enumerated 0x846d/c88b/2783 (G502 HERD Gaming Mouse) at 12 Mbps
800082.792005 AppleUSB20HubPort@60111000: Apple USBHostPort::enumerateDeviceComplete_block_Invoke: enumerated Ox13b2/8887/0100 (V49) at 12 Mbps
000082.821109 AppleUSB20HubPort068115000: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated 8x8424/274b/0200 (Hub Controller) at 480 Mbps
000082.879046 AppLeUSB20HubPort060131000: Apple USBHostPort::enumerateDeviceComplete block_invoke: enumerated 8x0451/2036/0101 (General Purpose USB Hub) at 12 Mbps
880082.948987 AppleUSB20HubPort060132000: AppleUSBHostPort::enumerateDeviceComplete block_invoke: enumerated Oxb58e/9e84/8108 (Yetl Stereo Microphone) at 12 Mbps
000083.215208 AppleUSB20HubPort@60131200: AppleUSBHostPort::enumerateDeviceComplete_block_invoke: enumerated Ox1038/1290/0600 (Arctis Pro Wireless) at 12 Mbps
000083.264466 App LeUSB20HubPort@60131308: Apple USBHostPort::enumerateDeviceComplete_block_invoke: enumerated 8x1838/1294/0112 (Arctis Pro Wireless) at 12 Mbps



[Shaneee]

Looks like its a PCI issue. The same issue a lot of MSI owners are facing. The extra PCI lanes look to be the issue here unfortunately. You can test this by booting Big Sur which should work without issue on the 5900X.



[stotes]

Looks like its a PCI issue. The same issue a lot of MSI owners are facing. The extra PCI lanes look to be the issue here unfortunately. You can test this by booting Big Sur which should work without issue on the 5900X.

That makes sense... and also saddens me.

Would my 6600xt work in Big Sur?



[Shaneee]

Ahh unfortuantly not no. Support was first added in 12.1 I'm afraid.



[stotes]

Ahh unfortuantly not no. Support was first added in 12.1 I'm afraid.

That's a bummer.
Do you think there is any chance the B550 MSI board's issue with PCIE lanes will be resolved with patches? Or should I start looking for an X570 motherboard to replace this one.



[Shaneee]

It's hard to say. Some ACPI methods were attempted but nothing was succesfull. It's the reason I swapped my MSI MPG X570 Gaming Plus for the ASUS ROG Strix X570-F board.



[stotes]

It's hard to say. Some ACPI methods were attempted but nothing was succesfull. It's the reason I swapped my MSI MPG X570 Gaming Plus for the ASUS ROG Strix X570-F board.

Thanks for the reply and continued assistance. I appreciate it.

Perhaps I should get one of them. I'd really like ethernet working oob.
Does Ethernet work OOB with the ASUS ROG Strix X570-F board?



[Shaneee]

Thanks for the reply and continued assistance. I appreciate it.

Perhaps I should get one of them. I'd really like ethernet working oob.
Does Ethernet work OOB with the ASUS ROG Strix X570-F board?

Not on Monterey no. The kext that was used (SmallTree) stopped working. However in the latest beta it is recognised without any kexts but crashes the system. It may work in a future update but I bought a Type-C to LAN adapter. There's also the X570-E from Asus. That board has a 2.5GB NIC which works as far as I'm aware. See AudioGod's build on that board here, https://forum.amd-osx.com/index.php...ig-sur-monterey-beta-opencore-0-7-4-efi.1685/
The latest EFI for that topic is on the last few pages.
