Aorus X470 Ultra Gaming - Ethernet Problem Big Sur

[whatsmymindhere]

I need ethernet kext for Intel I211 for big sur. I tried every smalltree kext's intel mausi and the others. Can you help me ?

AORUS X470 ULTRA GAMING
AMD RYZEN 5 2600X 3.6GHz
HYPERX Predator RGB 8GB 2933MHz CL15 DDR4 Single Kit



[Shaneee]

Did you use this one? https://github.com/khronokernel/SmallTree-I211-AT-patch/releases

Remember with OC you need to include the kext in the config.



[whatsmymindhere]

Thank you for your reply in such a short time. Yes i used. Actually my ethernet kext is defined but at the network connection the light is flashing one red one green. Weird.



[Shaneee]

Does it show in the network preferences? Set to DHCP?



[whatsmymindhere]

Yes I set before. My IP address dns everything it just keep connected and not connected writes at the status like a said one red one green. The times between 0.5 second



[Shaneee]

I'm assuming it works fine in Windows? It sounds like a loose connection tbh. Check your BIOS settings for "Serial Port" and make sure it's disabled.



[whatsmymindhere]

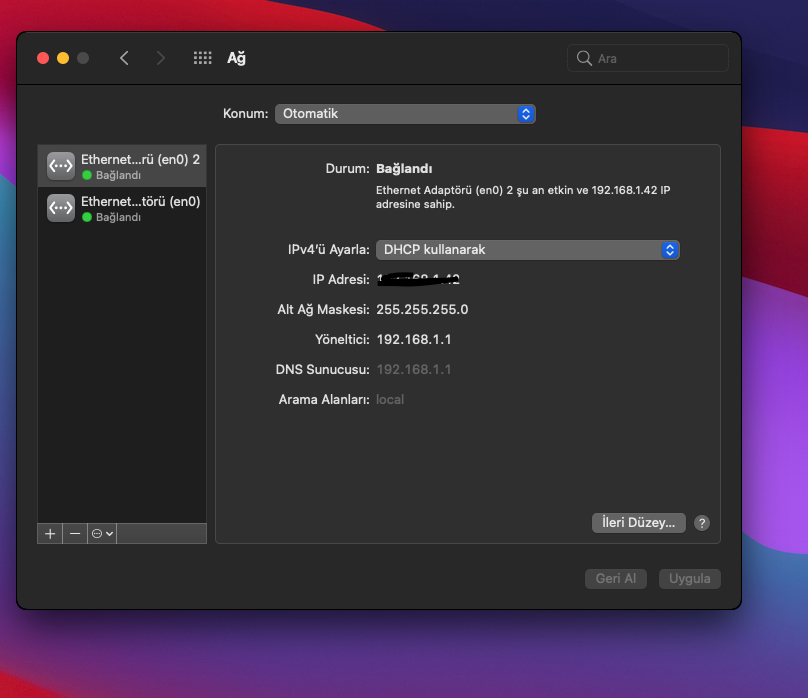

this is network window video right now. And yes everything’s fine at the windows. Weird thing is. This is my 20-25 turn. Work 2-3 times.



[Shaneee]

Did you use v1.3.0 from the link I sent? You can also try this,

• System Preferences → Energy Saver → Battery Power: Uncheck “wake for network access”
• System Preferences → Network → Advance → TCP/IP: Configure IPv6 – select “Link-Local only”



[whatsmymindhere]

It work but idk if I boot again will it work again. But thanks anyway. The solution is I write everything manually. Thank you. Sorry the language is Turkish. But you know what's which place.



[Shaneee]

Glad it's at least working now



[whatsmymindhere]

I boot again, and it’s not work. I told you. Few times work many times not work properly. Where’s the problem don’t get it. Same thing again. Flashing the light red - green / connected - not connected



[Shaneee]

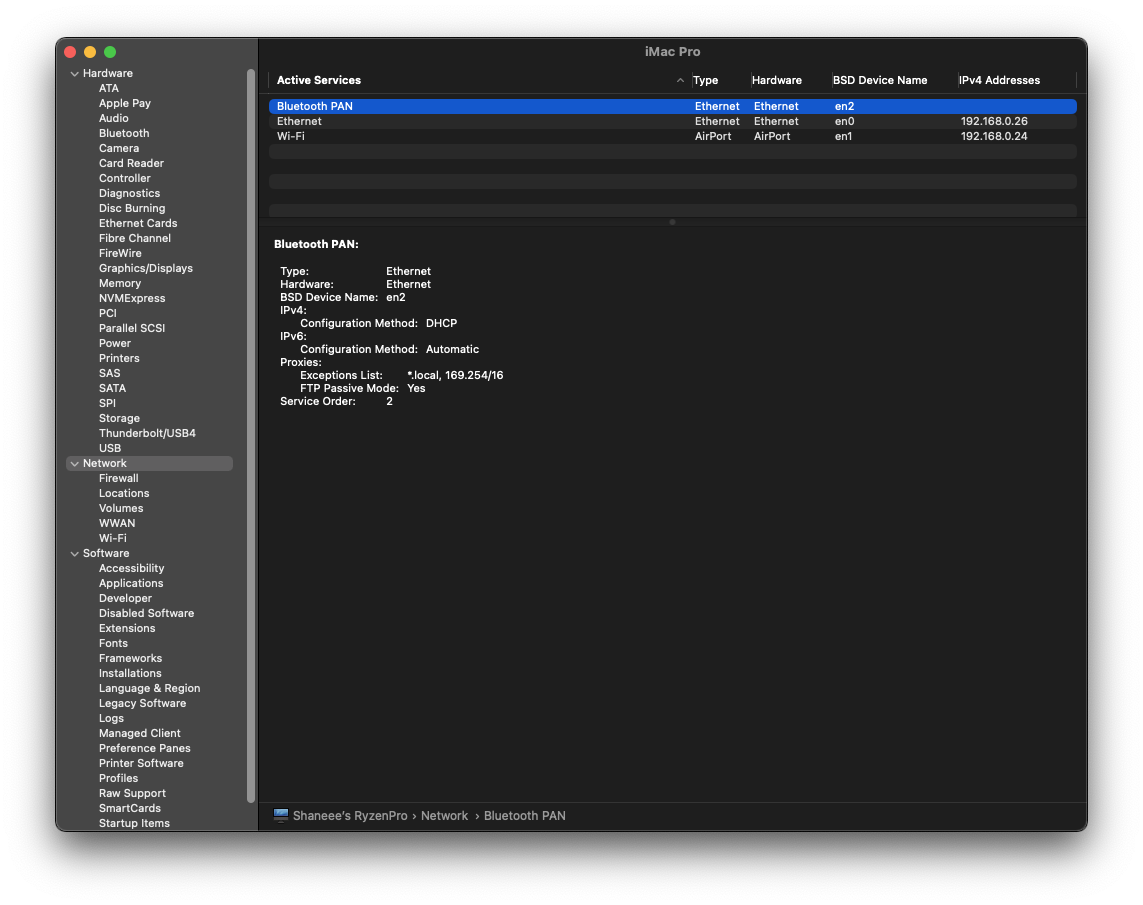

Even when the info is set manually? Try clearing the NVRAM. You can do this from OpenCore. Also is your LAN showing as en0?



[whatsmymindhere]

Yes it’s en0. I did few times reset nvram. Again same. The hackintosh is not closing normally alerts opened 1 times. It work at the beginning I forgot to say. Somethings block this but idk what it is



[Shaneee]

Hmm ok. Zip and upload your EFI folder for me and I'll take a look there.



[whatsmymindhere]

This is my EFI. Maybe first you should know i didnt introduce my Intel I211 ethernet at the DevicePro... i guess its necessery but you know better than me for sure



[Shaneee]

I don't see any issues there. Try resetting the Network Interfaces with these two commands in Terminal,

sudo rm /Library/Preferences/SystemConfiguration/NetworkInterfaces.plist
sudo rm /Library/Preferences/SystemConfiguration/preferences.plist



[whatsmymindhere]

Im sorry for keeping you so busy. I found the solution. Its Speed & Duplex at the windows like 100BASE-TX twisted-pair segment. Thank you so much. Btw can you offer to me for Ryzen and my system any kext app like please?



[Shaneee]

Ahh glad it's sorted. I'm not sure what you mean by this,

Btw can you offer to me for Ryzen and my system any kext app like please?



[whatsmymindhere]

Ahh glad it's sorted. I'm not sure what you mean by this,

Like AMDRyzenCPUPowerManagement.kext like, you say: you should install these kexts your pc any advice. I hope I could explain myself



[Shaneee]

Ahh ok. Download these two kext files and add them to your EFI and config the same as you did for the other kexts,

https://github.com/trulyspinach/SMCAMDProcessor/releases/download/0.6.6/AMDRyzenCPUPowerManagement.kext.zip

https://github.com/trulyspinach/SMCAMDProcessor/releases/download/0.6.4/SMCAMDProcessor.kext.zip

And this is the Application for it,

https://github.com/trulyspinach/SMCAMDProcessor/releases/download/0.6.6/AMD.Power.Gadget.app.zip
