[successful] B450 Pro Carbon AC Problem Bluetooth BCM94360CD (T919)

[sharklatan]

successful

update

luckily I solved them, and keeping the rgb
just disable with hackintool PRT4 (Bluetooth onboard)
place the generated files in their respective folders + remap usb and use kext it works

Releases · acidanthera/BrcmPatchRAM​

Contribute to acidanthera/BrcmPatchRAM development by creating an account on GitHub.
github.com

BrcmBluetoothInjector.kext

BrcmFirmwareData.kext

BrcmPatchRAM2.kext


I have used my EFI just added the changes

it also does not disable wifi onboard when deactivating it I lost the ethernet and I use it, all the usb ports working

Hello greetings to all I hope you are well

First of all he mentioned the BUILD descriptions

Installed Virtually all vanilla

Specs

MOBO MSI B450 Pro Carbon AC
CPU Ryzen 5 2600x
Cooler AMD Wraith Prism RGB
GPU RX 580
RAM 8gb x 2 XGP GAMMIX D10
WIFI FENVI T919 BCM94360CD

I have problems with bluetooth, Which is apparently causing conflict with the onboard

The strange thing is that it worked for me the first time I connected the pci dapter (It worked natively and as expected)

This is the last part that I have left to be able to have it fully functional

FENVI T919 BCM94360CD
It has no Hardware problem, it was tested on my Win 10 dualboot and it works perfectly



Then reboot and it didn't work again
I have tried to remap USB, But without success


OnBoard Bluetooth use USB Port PTR4
BRCM20702 Hub use USB Port PO14 / PO9 (I already tried to change the cable to another usb Connection )



I have already tried:

Remove the wireless card onboard (
Disable USB ports PTR4, PTR3, PTR5 etc

But I still don't get this to work properly (I just learned how to perform and not very well)


I've already run out of ideas and what else to do
I hope someone can help me solve this problem

EFI FOLDER

OC

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com

Attached capture of:


IOREGISTRYEXPLORER



HACKINTOOL


SYSTEM INFO












Thanks in advance I hope someone can help me



[sharklatan]

UPDATE

I have used the following guide

https://www.reddit.com/r/hackintosh/comments/f04bza

https://www.reddit.com/r/hackintosh/comments/f06gsb/_/fko37ne

Removing the XHC0 controller with killXHC0.kext

Now the device looks like this



But I still can't get the bluetooth to work or be recognized


As I had already commented on the PTR4 port It is the one that controls the internal bluetooth
I have also disabled the wi-fi card from the bios

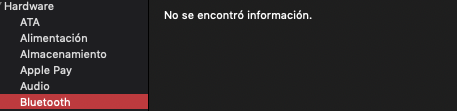

Now it tells me as if a Bluetooth device were not present


The USB dongle T919 (BRCM20702 Hub) is connected to the PO14 port



I still can't find How to make it work


It is the only thing that I still do not understand.
How is it that the first time I connected it, it worked and now it doesn't

Already tried to remapping, But I think I don't understand it much or I don't do it the right way



[sharklatan]

luckily I solved them, and keeping the rgb
just disable with hackintool PRT4 (Bluetooth onboard)
place the generated files in their respective folders + remap usb and use kext it works

Releases · acidanthera/BrcmPatchRAM

Contribute to acidanthera/BrcmPatchRAM development by creating an account on GitHub.

github.com

BrcmBluetoothInjector.kext

BrcmFirmwareData.kext

BrcmPatchRAM2.kext


I have used my EFI just added the changes

it also does not disable wifi onboard when deactivating it I lost the ethernet and I use it, all the usb ports working
