Please help

keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Spec as follows:
3600 NON X 6 core, MSI B450i Gaming Plus AC MITX, Gigabyte RX570 8gb, 16gb 2666mhz, 550gb WD BLUE sata - also have a 500gb pci-e 3.0 nvme that doesn't behave with Big Sur so resorted to using the sata... But can try using this again if needed? It used to just fail half way through installing Ventura for example or Big Sur, and even used as a 2nd drive when Big Sur is on sata, it just disappears mid copying files to it even if partitioned as Non APFS.

TLDR, it works perfectly with Big Sur, only BT doesn't work due to Intel no matter what kext I use - solved via an ASUS BT400 BT4.0 usb dongle so no biggie...

Problem is Sonoma will just reboot loop. Got annoyed and put Big Sur back on but will have another go tomorrow as I have the time...

Now what I want to know is, can I just paste my current working EFI folder into the usb installer's EFI partition then back into the SSD's providing it actually gets me to desktop? Or is there something sneaky I have to change in the config.plist? It's set for 6 cores but I noticed this differs depending on what version of macOS? But the Dortana guide only shows up to Ventura :( so I've no idea if anything needs changing?

In the past when I tried with Ventura it would have an issue with onboard graphics, I've since found the ignore function on my motherboard so hoping that isn't the issue this time (but as I say will take a pic/write what the error is when it happens again)

Just wondering if there's something silly my EFI needs for Sonoma that's different from what works on Big Sur? Any kexts that need changing or anything in the config.plist?

Please be gentle haha this is my first hackintosh since Leopard and then MSIwindOSX!

Thanks again!

Last edited:

Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186
To update to Sonoma you'll need to update OpenCore, kexts and the kernel patches to the latest version.

Please be gentle haha this is my first hackintosh since Leopard and then MSIwindOS!

So it's been a while lol I started on Snow Leopard with a Athlon II X2 215 :D


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
To update to Sonoma you'll need to update OpenCore, kexts and the kernel patches to the latest version.



So it's been a while lol I started on Snow Leopard with a Athlon II X2 215 :D
So do I just run OpenCore in my existing Big Sur install, then update it to the current install's SSD then to the Sonoma install usb?

Where do I get the updated kexts and patches for Sonoma, Dortana guide doesn't provide anything for Sonoma it's useless.


Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186

keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Our GitHub always has the latest available kernel patches. Note you'll need to set core count again, https://github.com/AMD-OSX/AMD_Vanilla
You can get the latest version of kexts from Dortania's build site, https://dortania.github.io/builds/#

If you're having issues upload your EFI and either myself or someone else will help getting it updated.
Thanks mate,
so I think I've updated all the kexts, got the latest version of OCAT and it's stating the following:

NOTE: This version of ocvalidate is only compatible with OpenCore version 0.9.6!
OCS: Missing key FixupAppleEfiImages, context <Quirks>!
OCS: Failed to parse data field as value with type mdata and <EN2x//6Spdw=> contents, context <ROM>!
Serialisation returns 2 errors!
Completed validating /Volumes/EFI/EFI/OC/config.plist in 1 ms. Found 2 issues requiring attention.


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Generated a new serial in OCAT, validation says everything is now fine, but on boot of the install usb I now get:

OC: Driver HfsPlus.efi at 1 cannot be found!
Halting on critical error


Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186
You're missing HfsPlus.efi from your Drivers folder then.


Attachments

  • HfsPlus.zip
    16.2 KB · Views: 3

keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
You're missing HfsPlus.efi from your Drivers folder then.
Added that mate, and now get this

00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:046 00:046 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:082 00:035 AAPL: #[EB|H:IS] 0
00:118 00:036 AAPL: #[EB|LOG:INIT] 2023-11-08T13:28:23
00:157 00:039 AAPL: #[EB|VERSION] <"bootbase.efi 580~743 (Official), built 2023-09-30T05:03:54-0700">
00:195 00:037 AAPL: #[EB|BUILD] <"BUILD-INFO[399]:{"DisplayName":"bootbase.efi","DisplayVersion":"580~743","RecordUuid":"9198E366-3A16-4EC2-ABA1-19F7AA98514A","BuildTime":"2023-09-30T05:03:54-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"580","BuildVersion":"743","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1500.0.37.1","SdkVersion":"14.1","SdkBuild":"23B60","TargetArchitectures":"x86_64"}">
00:236 00:040 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:279 00:043 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
00:315 00:035 AAPL: #[EB|H:IS] 0
00:351 00:035 AAPL: #[EB|WL:MODE] 0
00:389 00:038 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
00:423 00:033 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
00:462 00:038 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
00:499 00:036 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
00:535 00:036 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
00:579 00:043 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
00:614 00:035 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
00:651 00:036 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:686 00:035 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
00:729 00:042 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:766 00:037 AAPL: #[EB|H:IS] 0
00:802 00:035 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00
00:838 00:036 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
00:883 00:044 AAPL: #[EB|B:VAw]
00:919 00:035 AAPL: #[EB|B:IAw]
00:958 00:039 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00
00:994 00:035 AAPL: #[EB.BST.IDT|+]
01:094 00:100 AAPL: #[EB|BM] J137AP
01:132 00:037 AAPL: #[EB.BST.IDT|-]
01:168 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00
01:207 00:039 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00
01:251 00:043 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:287 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00
01:322 00:035 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
01:358 00:036 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:395 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E
01:434 00:038 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:469 00:035 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E
01:505 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:547 00:042 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:583 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:619 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:655 00:035 AAPL: #[EB|H:NOT]
01:692 00:036 AAPL: #[EB|SB:p] 0x1
01:734 00:042 AAPL: #[EB.B.MN|BM:+SB]
01:770 00:035 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(8|1)/Pci(0|3)/Usb(5, 0)/HD(Part2,Sig81F5D94E-95CA-4A36-851D-3CF43EB28451)
01:809 00:039 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi
01:850 00:040 AAPL: #[EB|LIMG:OPT]
01:885 00:035 AAPL: #[EB|RPS] 0 0 0
01:923 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:959 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
01:995 00:036 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
02:039 00:043 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
02:075 00:035 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
02:111 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
02:152 00:040 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:195 00:042 AAPL: #[EB|MBA:CL] <"">
02:231 00:036 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=223">
02:267 00:036 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:303 00:035 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=223 root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:401 00:097 AAPL: #[EB|LOG:VERBOSE] 2023-11-08T13:28:26
02:437 00:036 AAPL: #[EB.CSR.S|VAR] 0x00000040
02:472 00:035 AAPL: #[EB|OPT:BM] 0x200002
02:509 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist">
02:553 00:043 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
02:591 00:037 AAPL: #[EB|P:CPR] N
02:626 00:035 AAPL: #[EB|P:MPI] N
02:662 00:036 AAPL: #[EB|P:BPI] N
02:698 00:035 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF
02:741 00:043 AAPL: #[EB|KMR] 374128640
02:777 00:036 AAPL: #[EB.CS.CSKSD|+]
02:813 00:036 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
02:856 00:042 AAPL: #[EB.G.CS|-?] Ok(0)
02:896 00:039 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
02:943 00:047 AAPL: #[EB.B.SBS|SZ] 723512
02:990 00:046 AAPL: #[EB|B:SHA] <1d0f643f883548f08cddce56aea5dd2abe49241f>
03:099 00:109 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
03:219 00:119 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
03:257 00:037 AAPL: #[EB.WL.PWLFRTC|NONE]
03:296 00:039 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
03:346 00:050 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development">
03:466 00:119 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0">
03:585 00:119 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
03:691 00:105 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc">
03:805 00:114 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0">
05:831 02:025 OC: Prelinked injection SMCRadeonGPU.kext (V0.3.3) - Invalid Parameter
06:427 00:595 AAPL: #[EB|SB:p] 0x1
06:538 00:111 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
06:582 00:043 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m
06:685 00:103 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0">
07:049 00:363 AAPL: #[EB|SB:MKRN]
07:161 00:112 AAPL: #[EB.LD.LKFS|-?] Ok(0)
07:246 00:084 AAPL: #[EB.LD.LKC|-?] Ok(0)
07:340 00:093 AAPL: #[EB|BST:REV1]
07:378 00:038 AAPL: #[EB|CSR:OUT] 0x00000040
07:419 00:041 AAPL: #[EB.BST.FBS|+]
07:464 00:044 AAPL: #[EB.BST.FBS|ADSZ] 0
07:501 00:037 AAPL: #[EB.BST.FBS|KSSZ] 0
07:539 00:038 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
07:581 00:041 AAPL: #[EB|RH:pF] usr\standalone\OS.dmg.root_hash
07:629 00:048 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m">
07:670 00:040 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
07:711 00:041 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
07:755 00:044 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
07:800 00:044 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
07:839 00:038 AAPL: #[EB|LOG:DT] 2023-11-08T13:28:31
07:875 00:036 AAPL: #[EB|LOG:EXITBS:START] 2023-11-08T13:28:31


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
You're missing HfsPlus.efi from your Drivers folder then.
Just tried your HfsPlus.efi
OCAT tells me everything is now fine, yet trying to boot the Sonoma USB installer I get the following:

00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:046 00:046 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:082 00:035 AAPL: #[EB|H:IS] 0
00:118 00:036 AAPL: #[EB|LOG:INIT] 2023-11-08T13:28:23
00:157 00:039 AAPL: #[EB|VERSION] <"bootbase.efi 580~743 (Official), built 2023-09-30T05:03:54-0700">
00:195 00:037 AAPL: #[EB|BUILD] <"BUILD-INFO[399]:{"DisplayName":"bootbase.efi","DisplayVersion":"580~743","RecordUuid":"9198E366-3A16-4EC2-ABA1-19F7AA98514A","BuildTime":"2023-09-30T05:03:54-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"580","BuildVersion":"743","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1500.0.37.1","SdkVersion":"14.1","SdkBuild":"23B60","TargetArchitectures":"x86_64"}">
00:236 00:040 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:279 00:043 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
00:315 00:035 AAPL: #[EB|H:IS] 0
00:351 00:035 AAPL: #[EB|WL:MODE] 0
00:389 00:038 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
00:423 00:033 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
00:462 00:038 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
00:499 00:036 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
00:535 00:036 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
00:579 00:043 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
00:614 00:035 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
00:651 00:036 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:686 00:035 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
00:729 00:042 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:766 00:037 AAPL: #[EB|H:IS] 0
00:802 00:035 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00
00:838 00:036 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
00:883 00:044 AAPL: #[EB|B:VAw]
00:919 00:035 AAPL: #[EB|B:IAw]
00:958 00:039 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00
00:994 00:035 AAPL: #[EB.BST.IDT|+]
01:094 00:100 AAPL: #[EB|BM] J137AP
01:132 00:037 AAPL: #[EB.BST.IDT|-]
01:168 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00
01:207 00:039 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00
01:251 00:043 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:287 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00
01:322 00:035 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
01:358 00:036 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:395 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E
01:434 00:038 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:469 00:035 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E
01:505 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:547 00:042 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:583 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:619 00:035 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:655 00:035 AAPL: #[EB|H:NOT]
01:692 00:036 AAPL: #[EB|SB:p] 0x1
01:734 00:042 AAPL: #[EB.B.MN|BM:+SB]
01:770 00:035 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(8|1)/Pci(0|3)/Usb(5, 0)/HD(Part2,Sig81F5D94E-95CA-4A36-851D-3CF43EB28451)
01:809 00:039 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi
01:850 00:040 AAPL: #[EB|LIMG:OPT]
01:885 00:035 AAPL: #[EB|RPS] 0 0 0
01:923 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:959 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
01:995 00:036 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
02:039 00:043 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
02:075 00:035 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
02:111 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
02:152 00:040 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:195 00:042 AAPL: #[EB|MBA:CL] <"">
02:231 00:036 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=223">
02:267 00:036 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:303 00:035 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=223 root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:401 00:097 AAPL: #[EB|LOG:VERBOSE] 2023-11-08T13:28:26
02:437 00:036 AAPL: #[EB.CSR.S|VAR] 0x00000040
02:472 00:035 AAPL: #[EB|OPT:BM] 0x200002
02:509 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist">
02:553 00:043 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
02:591 00:037 AAPL: #[EB|P:CPR] N
02:626 00:035 AAPL: #[EB|P:MPI] N
02:662 00:036 AAPL: #[EB|P:BPI] N
02:698 00:035 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF
02:741 00:043 AAPL: #[EB|KMR] 374128640
02:777 00:036 AAPL: #[EB.CS.CSKSD|+]
02:813 00:036 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
02:856 00:042 AAPL: #[EB.G.CS|-?] Ok(0)
02:896 00:039 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
02:943 00:047 AAPL: #[EB.B.SBS|SZ] 723512
02:990 00:046 AAPL: #[EB|B:SHA] <1d0f643f883548f08cddce56aea5dd2abe49241f>
03:099 00:109 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
03:219 00:119 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
03:257 00:037 AAPL: #[EB.WL.PWLFRTC|NONE]
03:296 00:039 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
03:346 00:050 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development">
03:466 00:119 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0">
03:585 00:119 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
03:691 00:105 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc">
03:805 00:114 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0">
05:831 02:025 OC: Prelinked injection SMCRadeonGPU.kext (V0.3.3) - Invalid Parameter
06:427 00:595 AAPL: #[EB|SB:p] 0x1
06:538 00:111 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
06:582 00:043 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m
06:685 00:103 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0">
07:049 00:363 AAPL: #[EB|SB:MKRN]
07:161 00:112 AAPL: #[EB.LD.LKFS|-?] Ok(0)
07:246 00:084 AAPL: #[EB.LD.LKC|-?] Ok(0)
07:340 00:093 AAPL: #[EB|BST:REV1]
07:378 00:038 AAPL: #[EB|CSR:OUT] 0x00000040
07:419 00:041 AAPL: #[EB.BST.FBS|+]
07:464 00:044 AAPL: #[EB.BST.FBS|ADSZ] 0
07:501 00:037 AAPL: #[EB.BST.FBS|KSSZ] 0
07:539 00:038 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
07:581 00:041 AAPL: #[EB|RH:pF] usr\standalone\OS.dmg.root_hash
07:629 00:048 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m">
07:670 00:040 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
07:711 00:041 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
07:755 00:044 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
07:800 00:044 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
07:839 00:038 AAPL: #[EB|LOG:DT] 2023-11-08T13:28:31
07:875 00:036 AAPL: #[EB|LOG:EXITBS:START] 2023-11-08T13:28:31


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Please help this is killing me! I don't get why it works fine on Big Sur but wont even boot the installer on Sonoma?


Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186
Should just be a case of making sure OC, kexts and patches are upto date. You shouldn't need to change anything in the config settings wise.


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Should just be a case of making sure OC, kexts and patches are upto date. You shouldn't need to change anything in the config settings wise.
They all are? Makes no sense, even OCAT says they are? Why does it work on my current Big Sur install yet won't even boot the installer on Sonoma?


Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186
Upload your EFI and I'll take a look when I can. Feel free to remove SMBios info if you want. Just remember to add it back in when booting.


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Upload your EFI and I'll take a look when I can. Feel free to remove SMBios info if you want. Just remember to add it back in when booting.
Now I'm getting this:

UEFI->Output->InitialMode is illegal (Can only be Auto, Text, or Graphics)!

CheckUefi returns 1 error!

Yet I HAVE added BuiltinGraphics in propertree?

Or can I use OCAT and select UEFI and Output then TextRenderer BuiltinGraphics or SystemGraphics? Baring in mind I'm using a RX570 8GB so no onboard?
Even in OCAT when it validates it and moans about the above, I goto the UEFI and Output and it already says BuiltinGraphics?

This is so frustrating!!!

Can you not make me an EFI and upload it for a 6 core 3600NONX with a b450i motherboard with a RX580 8GB?


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Now I'm getting this:

00:000 00:000 OCS: Failed to parse data field as value with type mdata and <EN2x//6Spdw=> contents, context <ROM>!
01:727 01:727 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:732 00:004 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:735 00:003 AAPL: #[EB|H:IS] 0
01:739 00:003 AAPL: #[EB|LOG:INIT] 2023-11-08T18:09:38
01:743 00:003 AAPL: #[EB|VERSION] <"boot.efi 495.140.2~49 (Official), built 2022-08-29T05:07:17-0700">
01:746 00:003 AAPL: #[EB|BUILD] <"BUILD-INFO[300]:{"DisplayName":"boot.efi","DisplayVersion":"495.140.2~49","RecordUuid":"E1825ECA-9168-4C33-BEFA-0E978038B7D4","BuildTime":"2022-08-29T05:07:17-0700","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"495.140.2","BuildVersion":"49","BuildConfiguration":"Release","BuildType":"Official"}">
01:749 00:003 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:752 00:003 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
01:756 00:003 AAPL: #[EB|H:IS] 0
01:759 00:003 AAPL: #[EB|WL:MODE] 0
01:762 00:003 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
01:766 00:003 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
01:769 00:003 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
01:772 00:003 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
01:775 00:003 AAPL: #[EB|CFG:ARG] embed-log-dt 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default
01:779 00:003 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
01:782 00:003 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
01:785 00:003 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
01:788 00:003 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
01:792 00:003 AAPL: #[EB|H:IS] 0
01:795 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00
01:798 00:003 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:802 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00
01:810 00:007 AAPL: #[EB.BST.IDT|+]
01:815 00:004 AAPL: #[EB|BM] J137AP
01:819 00:004 AAPL: #[EB.BST.IDT|-]
01:822 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00
01:826 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00
01:829 00:003 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:832 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00
01:836 00:003 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
01:839 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:842 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E
01:845 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:849 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E
01:852 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:855 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:859 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:862 00:003 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:865 00:003 AAPL: #[EB|H:NOT]
01:869 00:003 AAPL: #[EB|SB:p] 0x1
01:872 00:003 AAPL: #[EB.B.MN|BM:+SB]
01:875 00:003 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(1|3)/Pci(0|1)/SATA(0,FFFF)/HD(Part2,Sig00D85B3D-81AA-4FF3-B37E-D19945CE8470)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842)
01:879 00:003 AAPL: #[EB|LIMG:FP] \543E56AD-8751-4575-9BDB-2FC1D242A70D\System\Library\CoreServices\boot.efi
01:882 00:003 AAPL: #[EB|LIMG:OPT]
01:896 00:013 AAPL: #[EB.OPT.LXF|F] <"\\543E56AD-8751-4575-9BDB-2FC1D242A70D\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:899 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"\\543E56AD-8751-4575-9BDB-2FC1D242A70D\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
01:902 00:003 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\543E56AD-8751-4575-9BDB-2FC1D242A70D\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:906 00:003 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
01:909 00:003 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
01:912 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
01:917 00:004 AAPL: #[EB|KF] <"">
01:920 00:003 AAPL: #[EB|MBA:CL] <"">
01:924 00:003 AAPL: #[EB|MBA:NV] <"keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=175">
01:927 00:003 AAPL: #[EB|MBA:KF] <"">
01:930 00:003 AAPL: #[EB|MBA:OUT] <"keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=175 chunklist-security-epoch=0 -chunklist-no-rev2-dev">
01:933 00:003 AAPL: #[EB.CSR.S|VAR] 0x00000040
01:937 00:003 AAPL: #[EB|OPT:BM] 0x280100
01:940 00:003 AAPL: #[EB.OPT.LXF|F] <"\\543E56AD-8751-4575-9BDB-2FC1D242A70D\\System\\Library\\CoreServices\\PlatformSupport.plist">
01:943 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"\\543E56AD-8751-4575-9BDB-2FC1D242A70D\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
01:948 00:005 AAPL: #[EB|B:VAw]
01:952 00:003 AAPL: #[EB|P:CPR] N
01:955 00:003 AAPL: #[EB|P:MPI] Y
01:961 00:006 AAPL: #[EB|P:SLOT] 1
01:965 00:003 AAPL: #[EB|P:SKIP.4] 14185 s
01:968 00:003 AAPL: #[EB|P:BPI] N
01:971 00:003 AAPL:
01:975 00:003 AAPL: **************************************************
01:978 00:003 AAPL: This system was automatically rebooted after panic
01:981 00:003 AAPL: **************************************************
01:985 00:003 AAPL: #[EB.G.CS|-?] Ok(0)
03:923 01:938 AAPL: #[EB|MBA:CL] <"keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=175 chunklist-security-epoch=0 -chunklist-no-rev2-dev">
03:930 00:007 AAPL: #[EB|MBA:NV] <"<null string>">
03:934 00:003 AAPL: #[EB|MBA:KF] <"<null string>">
03:937 00:003 AAPL: #[EB|MBA:OUT] <"keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=175 chunklist-security-epoch=0 -chunklist-no-rev2-dev chunklist-security-epoch=0 -chunklist-no-rev2-dev">
03:940 00:003 AAPL: #[EB|KMR] 374128640
03:944 00:003 AAPL: #[EB.CS.CSKSD|+]
03:947 00:003 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
03:950 00:003 AAPL: #[EB|WL] 0 0 0x01 0x01 6 0x0E
03:953 00:003 AAPL: #[EB.CS.LFC|+]
03:957 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey"> <"0">
03:970 00:013 AAPL: #[EB.FS.AGSVH|PU] 543E56AD-8751-4575-9BDB-2FC1D242A70D
03:973 00:003 AAPL: #[EB.FS.AGSVH|!] Err(0xE) <- BS.LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020
03:977 00:003 AAPL: #[EB.G.CS|-?] Ok(0)
03:991 00:014 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
03:997 00:006 AAPL: #[EB.B.SBS|SZ] 739896
04:005 00:008 AAPL: #[EB|B:SHA] <55e1fe2c48b5541698b030ac8eaf88d65fe0935c>
04:009 00:003 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
04:012 00:003 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
04:015 00:003 AAPL: #[EB.WL.PWLFRTC|NONE]
04:018 00:003 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
04:022 00:003 AAPL: #[EB.LD.LKC|D] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc.development">
04:025 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0">
04:029 00:004 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
04:033 00:003 AAPL: #[EB.LD.LKC|R.2] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc">
04:036 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0">
04:955 00:918 OC: Prelinked injection SMCRadeonGPU.kext () - Invalid Parameter
05:481 00:525 AAPL: #[EB|SB:p] 0x1
05:489 00:007 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
05:492 00:003 AAPL: #[EB|SB:MF] boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m
05:495 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0">
05:807 00:311 AAPL: #[EB|SB:MKRN]
05:827 00:020 AAPL: #[EB.LD.LKFS|-?] Ok(0)
05:830 00:003 AAPL: #[EB.LD.LKC|-?] Ok(0)
05:836 00:006 AAPL: #[EB|FWFM] 0x00000008FF9FFF3F
05:840 00:003 AAPL: #[EB|FWFT] 0x00000008FD8FF53E
05:843 00:003 AAPL: #[EB|BST:REV1]
05:846 00:003 AAPL: #[EB|CSR:OUT] 0x00000040
05:850 00:003 AAPL: #[EB.BST.FBS|+]
05:853 00:003 AAPL: #[EB.BST.FBS|ADSZ] 0
05:856 00:003 AAPL: #[EB.BST.FBS|KSSZ] 0
05:859 00:003 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
05:863 00:003 AAPL: #[EB|RH:pF] usr\standalone\OS.dmg.root_hash
05:866 00:003 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m">
05:869 00:003 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
05:874 00:004 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m"> <"0">
05:879 00:004 AAPL: #[EB.BST.FBS|RHPSZ] 229
05:882 00:003 AAPL: #[EB.BST.FBS|RHMSZ] 3626
05:885 00:003 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0
05:889 00:003 AAPL: #[EB|LOG:DT] 2023-11-08T18:09:43
05:892 00:003 AAPL: #[EB|LOG:EXITBS:START] 2023-11-08T18:09:43


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Am I meant to be booting off the usb then using opencore on the usb and selecting the Sonoma installer, or using the one on my existing Big Sur's SSD?
I've tried both and it now gives me this if I do it off the USB:

00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:060 00:060 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:120 00:059 AAPL: #[EB|H:IS] 0
00:181 00:061 AAPL: #[EB|LOG:INIT] 2023-11-08T18:13:36
00:243 00:061 AAPL: #[EB|VERSION] <"bootbase.efi 580~743 (Official), built 2023-09-30T05:03:54-0700">
00:302 00:059 AAPL: #[EB|BUILD] <"BUILD-INFO[399]:{"DisplayName":"bootbase.efi","DisplayVersion":"580~743","RecordUuid":"9198E366-3A16-4EC2-ABA1-19F7AA98514A","BuildTime":"2023-09-30T05:03:54-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"580","BuildVersion":"743","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1500.0.37.1","SdkVersion":"14.1","SdkBuild":"23B60","TargetArchitectures":"x86_64"}">
00:368 00:065 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:430 00:062 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
00:491 00:060 AAPL: #[EB|H:IS] 0
00:550 00:059 AAPL: #[EB|WL:MODE] 0
00:616 00:066 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
00:679 00:062 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
00:735 00:056 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
00:795 00:059 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
00:862 00:067 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
00:923 00:061 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
00:986 00:063 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
01:041 00:054 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
01:159 00:117 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
01:215 00:056 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
01:282 00:067 AAPL: #[EB|H:IS] 0
01:337 00:055 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00
01:399 00:061 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:453 00:053 AAPL: #[EB|B:VAw]
01:521 00:068 AAPL: #[EB|B:IAw]
01:581 00:059 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00
01:648 00:066 AAPL: #[EB.BST.IDT|+]
01:708 00:060 AAPL: #[EB|BM] J137AP
01:769 00:060 AAPL: #[EB.BST.IDT|-]
01:832 00:062 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00
01:899 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00
01:960 00:061 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
02:020 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00
02:080 00:059 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
02:148 00:068 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:208 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E
02:275 00:066 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:335 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E
02:395 00:059 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:458 00:062 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:525 00:067 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:587 00:061 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
02:647 00:060 AAPL: #[EB|H:NOT]
02:763 00:116 AAPL: #[EB|SB:p] 0x1
02:826 00:062 AAPL: #[EB.B.MN|BM:+SB]
02:886 00:060 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(8|1)/Pci(0|3)/Usb(5, 0)/HD(Part2,Sig81F5D94E-95CA-4A36-851D-3CF43EB28451)
02:949 00:063 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi
03:011 00:061 AAPL: #[EB|LIMG:OPT]
03:071 00:060 AAPL: #[EB|RPS] 0 0 0
03:132 00:060 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
03:199 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
03:259 00:060 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
03:322 00:062 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
03:378 00:056 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
03:446 00:068 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
03:508 00:061 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
03:577 00:068 AAPL: #[EB|MBA:CL] <"">
03:633 00:056 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=137">
03:693 00:059 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
03:753 00:059 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=137 root-dmg=file:///BaseSystem/BaseSystem.dmg">
03:819 00:066 AAPL: #[EB|LOG:VERBOSE] 2023-11-08T18:13:40
03:879 00:060 AAPL: #[EB.CSR.S|VAR] 0x00000040
03:940 00:060 AAPL: #[EB|OPT:BM] 0x200002
04:000 00:060 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist">
04:063 00:063 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
04:123 00:059 AAPL: #[EB|P:CPR] N
04:182 00:059 AAPL: #[EB|P:MPI] N
04:243 00:061 AAPL: #[EB|P:BPI] N
04:304 00:060 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF
04:421 00:116 AAPL: #[EB|KMR] 374128640
04:488 00:067 AAPL: #[EB.CS.CSKSD|+]
04:548 00:060 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
04:611 00:063 AAPL: #[EB.G.CS|-?] Ok(0)
04:673 00:061 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
04:751 00:077 AAPL: #[EB.B.SBS|SZ] 723512
04:822 00:071 AAPL: #[EB|B:SHA] <1d0f643f883548f08cddce56aea5dd2abe49241f>
04:959 00:136 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
05:073 00:114 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
05:136 00:062 AAPL: #[EB.WL.PWLFRTC|NONE]
05:199 00:063 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
05:273 00:073 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development">
05:344 00:071 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0">
05:490 00:146 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
05:635 00:144 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc">
05:792 00:156 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0">
05:950 00:158 OC: Image Kexts\WhateverGreen.kext\Contents\MacOS\WhateverGreen is missing for injected kext WhateverGreen.kext (V1.6.6)


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Right, so switched out the WhateverGreen

and now stuck on this and restarts
00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:037 00:037 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:072 00:034 AAPL: #[EB|H:IS] 0
00:106 00:034 AAPL: #[EB|LOG:INIT] 2023-11-08T18:28:27
00:142 00:036 AAPL: #[EB|VERSION] <"bootbase.efi 580~743 (Official), built 2023-09-30T05:03:54-0700">
00:183 00:040 AAPL: #[EB|BUILD] <"BUILD-INFO[399]:{"DisplayName":"bootbase.efi","DisplayVersion":"580~743","RecordUuid":"9198E366-3A16-4EC2-ABA1-19F7AA98514A","BuildTime":"2023-09-30T05:03:54-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"580","BuildVersion":"743","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1500.0.37.1","SdkVersion":"14.1","SdkBuild":"23B60","TargetArchitectures":"x86_64"}">
00:269 00:086 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
00:305 00:035 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
00:338 00:033 AAPL: #[EB|H:IS] 0
00:372 00:033 AAPL: #[EB|WL:MODE] 0
00:413 00:041 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
00:446 00:033 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
00:483 00:036 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
00:518 00:034 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
00:552 00:034 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
00:590 00:037 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
00:624 00:033 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
00:660 00:036 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:697 00:036 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
00:730 00:033 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
00:770 00:039 AAPL: #[EB|H:IS] 0
00:804 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00
00:837 00:032 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
00:870 00:033 AAPL: #[EB|B:VAw]
00:909 00:039 AAPL: #[EB|B:IAw]
00:943 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00
00:983 00:040 AAPL: #[EB.BST.IDT|+]
01:016 00:032 AAPL: #[EB|BM] J137AP
01:055 00:038 AAPL: #[EB.BST.IDT|-]
01:088 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00
01:122 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00
01:178 00:055 AAPL: #[EB|BRD:NV] Mac-7BA5B2D9E42DDD94
01:213 00:035 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00
01:247 00:033 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
01:280 00:033 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:313 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E
01:355 00:041 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:388 00:033 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E
01:431 00:042 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:465 00:034 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:498 00:033 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:536 00:037 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
01:570 00:033 AAPL: #[EB|H:NOT]
01:665 00:095 AAPL: #[EB|SB:p] 0x1
01:702 00:036 AAPL: #[EB.B.MN|BM:+SB]
01:736 00:033 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(8|1)/Pci(0|3)/Usb(5, 0)/HD(Part2,Sig81F5D94E-95CA-4A36-851D-3CF43EB28451)
01:772 00:036 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi
01:805 00:032 AAPL: #[EB|LIMG:OPT]
01:849 00:044 AAPL: #[EB|RPS] 0 0 0
01:884 00:034 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:921 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
01:955 00:033 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist">
01:988 00:033 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
02:028 00:040 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
02:062 00:033 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
02:097 00:034 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:132 00:034 AAPL: #[EB|MBA:CL] <"">
02:166 00:034 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=195">
02:206 00:040 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:239 00:033 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug0x100 alcid=1 npci=0x2000 slide=195 root-dmg=file:///BaseSystem/BaseSystem.dmg">
02:277 00:037 AAPL: #[EB|LOG:VERBOSE] 2023-11-08T18:28:29
02:312 00:035 AAPL: #[EB.CSR.S|VAR] 0x00000040
02:345 00:033 AAPL: #[EB|OPT:BM] 0x200002
02:384 00:038 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist">
02:417 00:033 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
02:453 00:035 AAPL: #[EB|P:CPR] N
02:487 00:033 AAPL: #[EB|P:MPI] N
02:520 00:032 AAPL: #[EB|P:BPI] N
02:561 00:041 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF
02:596 00:035 AAPL: #[EB|KMR] 374128640
02:630 00:033 AAPL: #[EB.CS.CSKSD|+]
02:663 00:033 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
02:698 00:034 AAPL: #[EB.G.CS|-?] Ok(0)
02:736 00:038 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
02:787 00:050 AAPL: #[EB.B.SBS|SZ] 723512
02:831 00:043 AAPL: #[EB|B:SHA] <1d0f643f883548f08cddce56aea5dd2abe49241f>
02:949 00:118 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
03:053 00:104 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
03:095 00:042 AAPL: #[EB.WL.PWLFRTC|NONE]
03:132 00:036 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
03:228 00:096 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development">
03:336 00:107 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0">
03:443 00:107 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
03:552 00:108 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc">
03:595 00:042 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0">
05:797 02:201 AAPL: #[EB|SB:p] 0x1
05:835 00:038 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
05:876 00:040 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m
05:918 00:041 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0">
06:198 00:280 AAPL: #[EB|SB:MKRN]
06:256 00:057 AAPL: #[EB.LD.LKFS|-?] Ok(0)
06:298 00:042 AAPL: #[EB.LD.LKC|-?] Ok(0)
06:335 00:037 AAPL: #[EB|BST:REV1]
06:372 00:037 AAPL: #[EB|CSR:OUT] 0x00000040
06:409 00:036 AAPL: #[EB.BST.FBS|+]
06:452 00:043 AAPL: #[EB.BST.FBS|ADSZ] 0
06:487 00:035 AAPL: #[EB.BST.FBS|KSSZ] 0
06:523 00:035 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
06:561 00:037 AAPL: #[EB|RH:pF] usr\standalone\OS.dmg.root_hash
06:603 00:041 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m">
06:648 00:045 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
06:694 00:046 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
06:732 00:037 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
06:770 00:038 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
06:806 00:035 AAPL: #[EB|LOG:DT] 2023-11-08T18:28:34
06:849 00:043 AAPL: #[EB|LOG:EXITBS:START] 2023-11-08T18:28:34


keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
Am I meant to have SSDT-EC-Desktop.aml in here


Shaneee

The AMD Guy
Staff member
Administrator
Joined
Mar 13, 2020
Messages
2,186

keef247

Member
AMD OS X Member
Joined
Sep 10, 2020
Messages
47
This should be set to Auto.

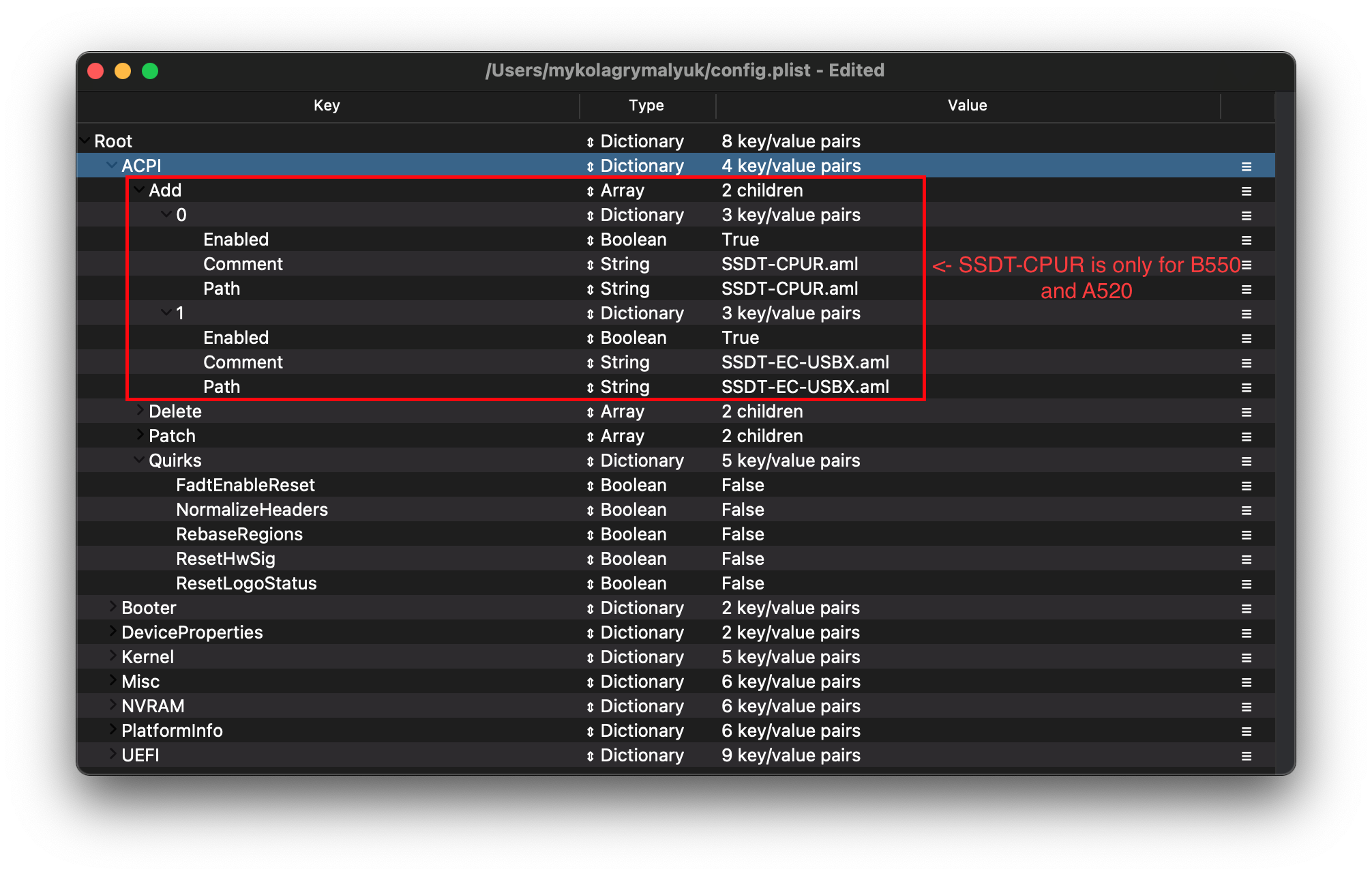

Yes you use that but SSDT-CPUR isn't required for your system.
Hi mate, thanks for all your help, I've done it.

Was missing that stupid AppleMCEReporterDisabler I hadn't added as on Big Sur it was pre <12.X macOS so didn't realise I needed it.
Thanks for all your help! Typing this from Sonoma 14.1 now :)

Back
Top Bottom
  AdBlock Detected
Sure, ad-blocking software does a great job at blocking ads, but it also blocks some useful and important features of our website. For the best possible site experience please take a moment to disable your AdBlocker.
