# macOS on Gigabyte B650I Motherboard
cugia1991/kubokun: Gigabyte B650I Hackintosh (github.com)

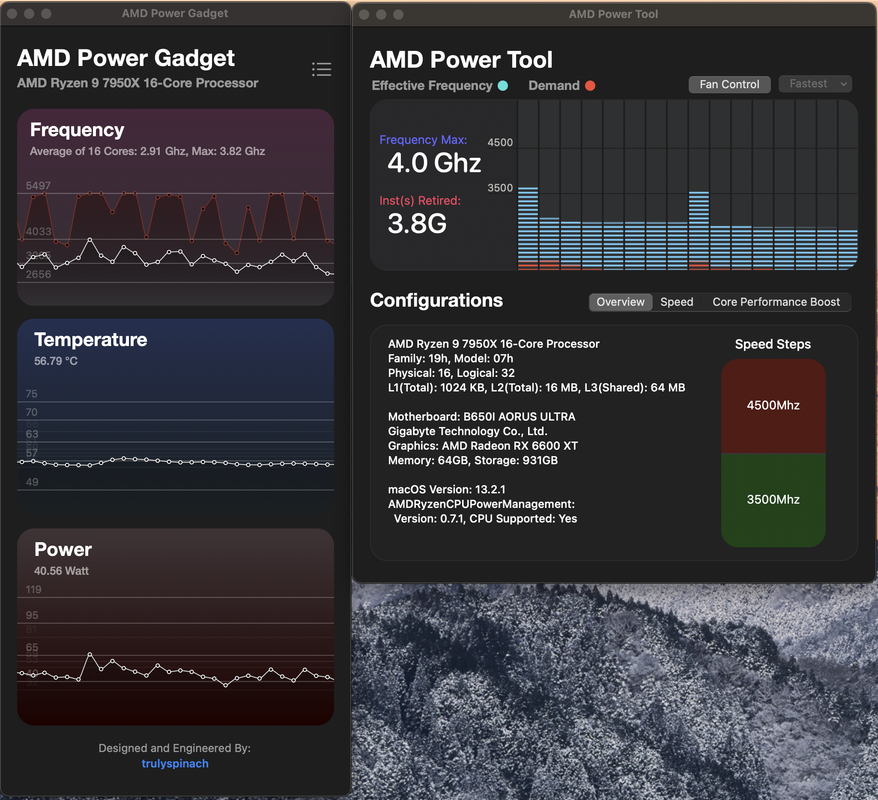

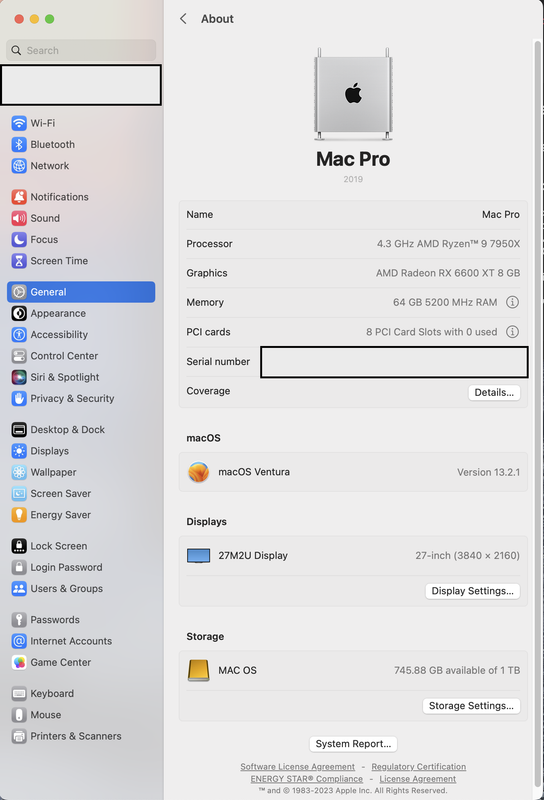

## Screenshots
## Specifications
Type | Spec | Status
:---------|:---------|:----------
Model Name | Gigabyte B650I Aorus Ultra | GIGABYTE B650I AORUS ULTRA AM5 Mini ITX Motherboard - Newegg.com
CPU | AMD Ryzen™ 9 7950x CPU | AMD Ryzen 9 7950X - 16-Core 4.5 GHz - Socket AM5 - 170W Desktop Processor (100-100000514WOF) - Newegg.com
Dedicated GPU | AMD Radeon™ RX 6600XT | Amazon.co.jp: Kuroutoshikou RD-RX6600XT-E8GB/DF AMD Radeon RX6600XT Graphics Board with GDDR6 8GB : Computers
RAM | 64GB 5200MHz DDR5 | Crucial 64GB (2 x 32GB) DDR5 5200 (PC5 41600) Desktop Memory Model CT2K32G52C42U5 - Newegg.com
Wi-Fi | Original has been replaced with Fenvi BCM94360NG |
Ethernet | Intel i225-V |
Audio | Realtek USB 2.0 |
Storage | SN770 1TB for MAC OS , SP 1TB for Data , Toshiba 512GB for Windows
PC Case | Cooj MQ6 6.8L ITX COOJ Design Sparrow-MQ6 6.8L One-piece aluminum itx pc case
PSU | Enhance ENP-7660B Flex ATX Black ENP 7660B VK 600W Flex ATX Power Supply | eBay
CPU Cooler | AXP-100 Full Cooper with 140mm Noctua fan AXP-100-Full Copper – Thermalright
## What's working
Type | Status
:---------|:----------
CPU |
AMD GPU Acceleration |
CPU & GPU Power Management |
Audio |
Ethernet |
Wi-Fi / Bluetooth |
Airdrop / Handoff |
Shutdown / Reboot |
## What's not working
AMD VT-d
## Instructions
### Pre-Installation
Enter BIOS - Load Default Settings - Disable iGPU

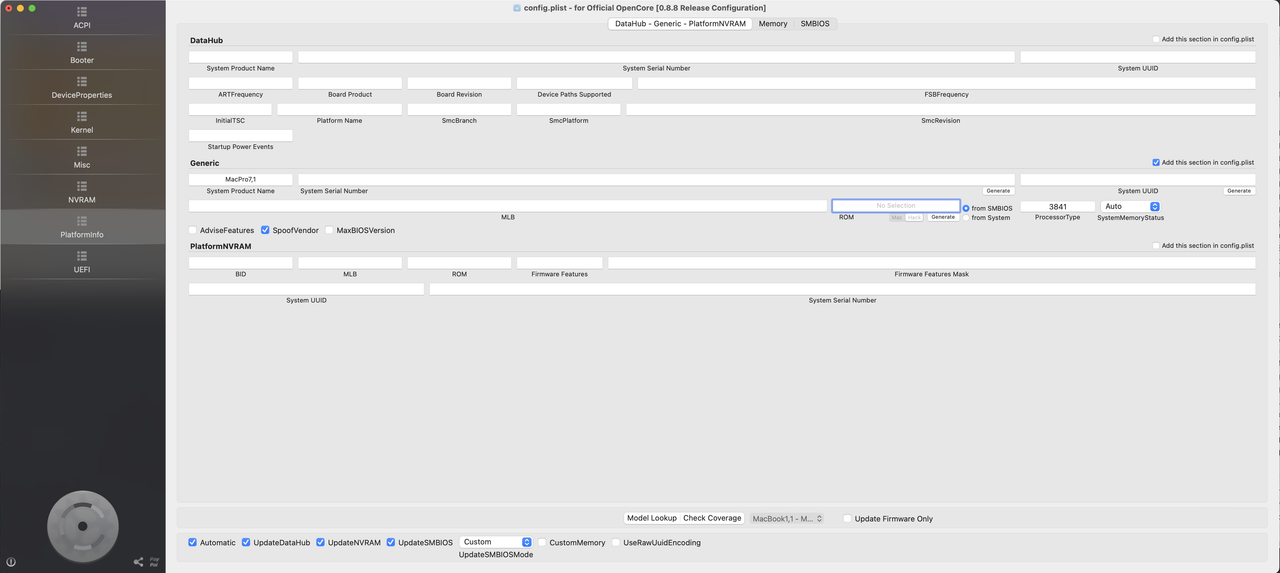

#### Changing your SMBIOS data
Download and run GenSMBIOS
Type 2 and select your config.plist, then type 3 and type Macpro7,1
#### Changing your CPU name
If you CPU is not AMD Ryzen™ 9 7950X,

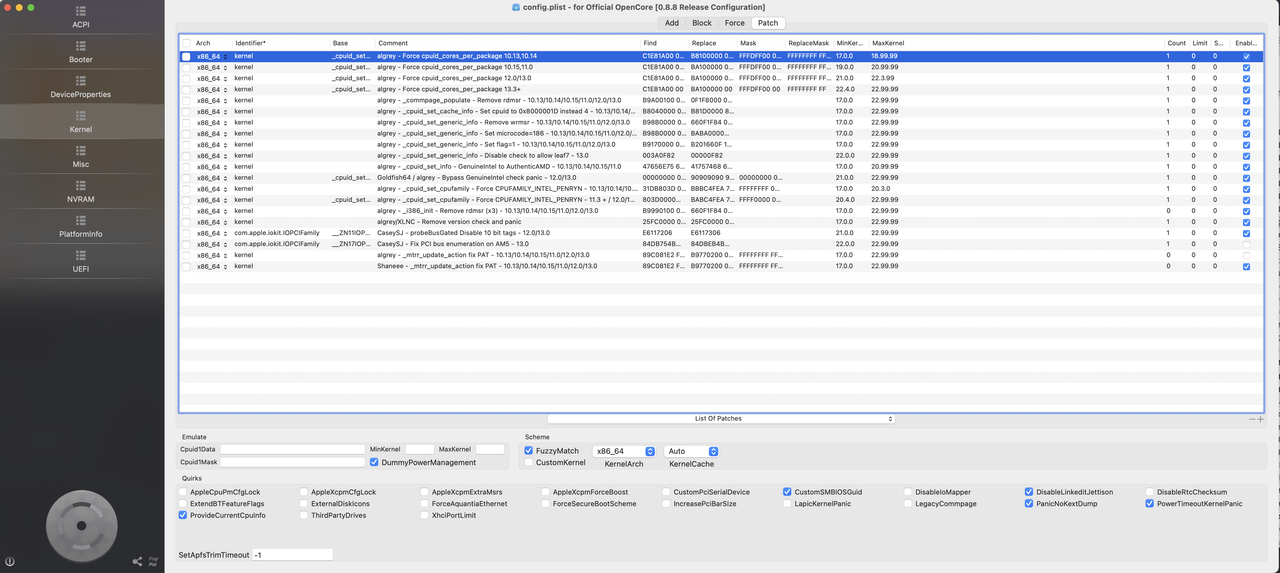

Change the kernel patch to reflect the number of physical CPU cores in your processor follow this guide https://dortania.github.io/OpenCore-Install-Guide/AMD/zen.html#kernel;
If using a 2, 4, or 6 core CPU, change ProcessorType to 1537 as shown
If using a CPU with 8 or more cores, set ProcessorType to 3841 as shown

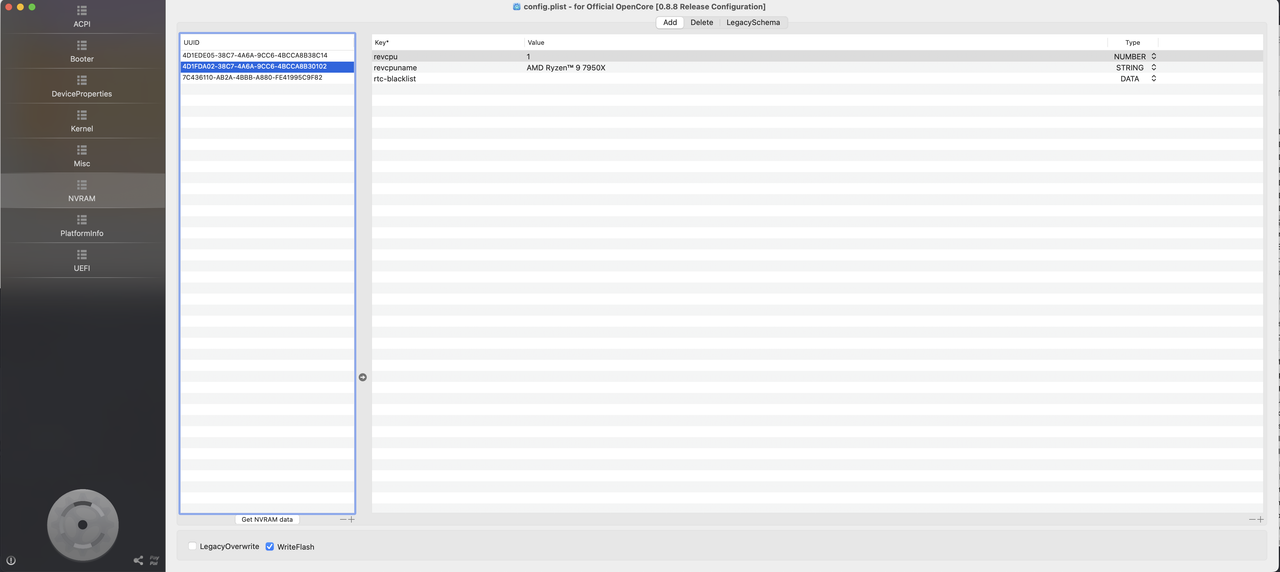

Change CPU name under NVRAM
Remove boot-argument agdpmod=pikera if using RX 550, 560, 570, 580, Vega 56, Vega 64, and Radeon VI
## Credits
cugia1991/kubokun: Gigabyte B650I Hackintosh (github.com)

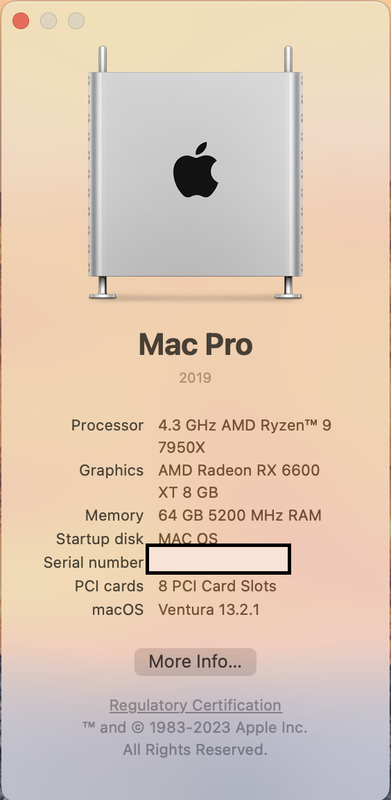

## Screenshots
## Specifications
Type | Spec | Status
:---------|:---------|:----------
Model Name | Gigabyte B650I Aorus Ultra | GIGABYTE B650I AORUS ULTRA AM5 Mini ITX Motherboard - Newegg.com
CPU | AMD Ryzen™ 9 7950x CPU | AMD Ryzen 9 7950X - 16-Core 4.5 GHz - Socket AM5 - 170W Desktop Processor (100-100000514WOF) - Newegg.com
Dedicated GPU | AMD Radeon™ RX 6600XT | Amazon.co.jp: Kuroutoshikou RD-RX6600XT-E8GB/DF AMD Radeon RX6600XT Graphics Board with GDDR6 8GB : Computers
RAM | 64GB 5200MHz DDR5 | Crucial 64GB (2 x 32GB) DDR5 5200 (PC5 41600) Desktop Memory Model CT2K32G52C42U5 - Newegg.com
Wi-Fi | Original has been replaced with Fenvi BCM94360NG |
Ethernet | Intel i225-V |
Audio | Realtek USB 2.0 |
Storage | SN770 1TB for MAC OS , SP 1TB for Data , Toshiba 512GB for Windows
PC Case | Cooj MQ6 6.8L ITX COOJ Design Sparrow-MQ6 6.8L One-piece aluminum itx pc case
PSU | Enhance ENP-7660B Flex ATX Black ENP 7660B VK 600W Flex ATX Power Supply | eBay
CPU Cooler | AXP-100 Full Cooper with 140mm Noctua fan AXP-100-Full Copper – Thermalright
## macOS Update History- macOS Monterey 13.0
- macOS Ventura 13.2.1
## What's working
Type | Status
:---------|:----------
CPU |
AMD GPU Acceleration |
CPU & GPU Power Management |
Audio |
Ethernet |
Wi-Fi / Bluetooth |
Airdrop / Handoff |
Shutdown / Reboot |
## What's not working
AMD VT-d
## Instructions
### Pre-Installation
Enter BIOS - Load Default Settings - Disable iGPU
#### Changing your SMBIOS data
Download and run GenSMBIOS
Type 2 and select your config.plist, then type 3 and type Macpro7,1
#### Changing your CPU name
If you CPU is not AMD Ryzen™ 9 7950X,
Change the kernel patch to reflect the number of physical CPU cores in your processor follow this guide https://dortania.github.io/OpenCore-Install-Guide/AMD/zen.html#kernel;
If using a 2, 4, or 6 core CPU, change ProcessorType to 1537 as shown
If using a CPU with 8 or more cores, set ProcessorType to 3841 as shown
Change CPU name under NVRAM
Remove boot-argument agdpmod=pikera if using RX 550, 560, 570, 580, Vega 56, Vega 64, and Radeon VI
## Credits
- Dortania for their awesome guides.
- Apple for macOS.
- Acidanthera for OpenCore and most Kexts.
- yusufklncc for README template.
- And anyone else that helped to develop and improve hackintoshing.
- @CaseySJ for Ryzen 7000 patchs
- @CorpNewt for Gygabyte patch
