Upgrade_B550 Gigabyte Aorus Pro (Bios: F17 (Mar 27, 2024)) | Ryzen 7 5800X3D | Merc 319 Black RX 6950 XT XFX | USBMapping via SSDT

[Fooose]

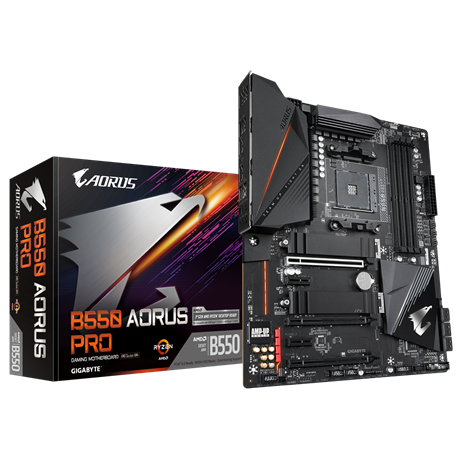

• Motherboard: Gigabyte B550 Aorus Pro | rev. 1.0
• Bios: F17 (Mar 27, 2024)
  Major vulnerabilities updates, customers are strongly encouraged to update to this release at the earliest. Credits to "Assaf Carlsbad and Itai Liba from SentinelOne" • Introduce capsule BIOS support starting this version.
• CPU: Ryzen 7 5800X3D
• GPU: Merc 319 Black RX 6950 XT XFX
• RAM: 32 GB 3600
• Festplatte: M2 2x2TB
• Audio Device: ALC 1220
• macOS Version: 13.6.3
• SMBIOS: iMacPro 1.1 macPro7.1
• OpenCore Version: 0.9.X

Hello, everyone, I finally got my upgraded system up and running - everything works, including (Sound,Bluetooth,CPU_Temp,etc). For all who are not so patient I provide my debug-EFI. Who still has tips and optimizations, can share them with me, especially regarding USB-mapping. So, now have fun!

My GPU works with "SSDT-6950XT-SPOOF" and WG.kext.

Best regards Fooose

LAN-Fix-Realtek® 2.5GbE LAN : open Terminal: "sudo ifconfig en0 media 1000baseT mediaopt full-duplex"
Thanks DSM2!
Update to LucyRTL8125Ethernet.kext Vers.(1.1.0d8) -->lan fix no longer required.

Bios: F15 Unfortunately, sleep does not work for me with all versions after F12. Sleep works with SSDT. Thanks to atanvarno

Major settings to be changed based on the default optimal settings:

• deactivate I2C and ESPI (essential to solve the random freeze problem) it must be in BIOS (advanced mode) under Settings -> AMD CBS -> FCH Common Options NEW BiosVersion 14c, no longer necessary
• if applicable, set PCIe slot to Gen4 instead of Auto (may contribute to a better stability) NEW BiosVersion 14c, no longer necessary
• enable X.M.P. memory profile
• disable trusted computing
• disable wake and boot over LAN
• enable power loading in Platform Power settings (may contribute to a better stability)
• setup fan profiles
• Other relevant default settings:
• Above 4G Decoding: disabled →enabled (bootoption: ncpi=2000 removed)
• Resizable BAR support disabled
• XHCI Hand-off: enabled
• HPET: enabled
• CSM support: enabled →disabled
• BIOS → Advanced Mode → Settings → Re-Size BAR Support, choose “Auto” (from version OC 0.7.5)
• USB declared via DSDT by https://www.hackintosh-forum.de/user/34281-apfelnico/ (from version OC 0.7.5) until OC 0.8.4
• USB via SSDT (SSDT-B550-PTXH-TO-XHC2, SSDT-B550-XHC0-TO-XHC) defines.(vers. OC 0.8.5)

here you will find my old configuration.

You can find all my OC releases for my board on GitHub !



[atanvarno]

Bios: F15 Unfortunately, sleep does not work for me with all versions after F12.

My Gigabyte B550I build is on 18c and I solved sleep issues with some custom SSDT.

I looked into logs and figured out that these two devices were causing instant-wake. Thus try looking for something like this in logs

kernel: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: GPP0 PT23

So when I found that, I disabled the devices entirely:

DefinitionBlock ("", "SSDT", 2, "ATNVR", "DSBL", 0x00001000)
{
    External (_SB_.PCI0.GPP0, DeviceObj)
    External (_SB_.PCI0.GPP1.PT02.PT23, DeviceObj)

    If (_OSI ("Darwin"))
    {
        Scope (_SB.PCI0.GPP0)
        {
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Return (Zero)
            }
        }

        Scope (\_SB.PCI0.GPP1.PT02.PT23)
        {
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Return (Zero)
            }
        }
    }
}

Over a year later, this still works just fine.



[Fooose]

Thank you for your information and help, the error looks slightly different for me.

I have also found the area in the original DSDT.
Can you advise me to understand if I have to create a separate DSDT for each address "PT21", "PT22" ...?
Or am I not understanding something?

OKAY ! it works !!!

Many thanks for your help!



[Fooose]

New EFI

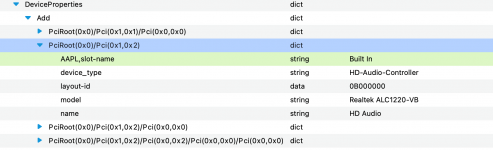

p.s. I have noticed that my internal sound card (Realtek ALC1220-VB) no longer works. Does anyone have any idea what the problem could be?



[leesurone]

New EFI

p.s. I have noticed that my internal sound card (Realtek ALC1220-VB) no longer works. Does anyone have any idea what the problem could be?

I would try a different ID, there are several that can work. Reset the NVRAM after each change.

Supported codecs

Native macOS HD audio for not officially supported codecs - acidanthera/AppleALC

github.com

0x100101, 0x100003, layout 1, 2, 3, 5, 7, 11, 13, 15, 16, 17, 18, 20, 21, 25, 27, 28, 29, 30, 34, 35, 98, 99, 100



[Fooose]

I would try a different ID, there are several that can work. Reset the NVRAM after each change.

Supported codecs

Native macOS HD audio for not officially supported codecs - acidanthera/AppleALC

github.com

0x100101, 0x100003, layout 1, 2, 3, 5, 7, 11, 13, 15, 16, 17, 18, 20, 21, 25, 27, 28, 29, 30, 34, 35, 98, 99, 100

Thanks for your tip. I have always entered the "Layout -ID" and it worked, I only noticed a few weeks ago that it no longer works.
The board is the same, I just replaced the CPU and GPU a few weeks ago. I can't say whether there is a connection, but now I can't get the sound to work.



[leesurone]

Thanks for your tip. I have always entered the "Layout -ID" and it worked, I only noticed a few weeks ago that it no longer works.
The board is the same, I just replaced the CPU and GPU a few weeks ago. I can't say whether there is a connection, but now I can't get the sound to work.

Layout ID will still work to enable sound but you may need to change the value now.



[Fooose]

newEFI



[Fooose]

newEFI !



[Fooose]

newEFI !
I have replaced my Broadcom WLAN card with one from Intel.
As a result, the EFI has grown a lot.
