[SUCCESS+Update] GIGABYTE X670 Gaming X AX / Ryzen 9 7950X / RX 6950XT / Triple Boot macOS Sequoia+Ventura+Windows 11

[KWODO]

UPDATED ON 08 Juli 2025

MY FIRST AMD HACKINTOSH
and its working perfectly - big thanks to this awesome community

(macOS Ventura 13.1 / macOS Sequoia 15.3.1 - AMD Radeon RX 6800 XT 16GB) (whatevergreen.kext)


(macOS Ventura 13.1 / macOS Sequoia 15.3.1 - Sapphire TOXIC AMD Radeon RX 6950 XT Limited Edition 16GB) (nootrx.kext)


MAINBOARD
GIGABYTE X670 Gaming X AX (rev. 1.0) (BIOS F34)
GA-X670-GA-X-AX-R10
Realtek HD Audio (ALC897) √ (OpenCore: AudioDxe.efi) √ (macOS Ventura: AppleALC.kext v1.7.7) X (macOS Sequoia)
Realtek 2.5GbE LAN (RTL8125) √ (LucyRTL8125Ethernet.kext)
MediaTek Wi-Fi 6E RZ616 BT5.2 (MT7922A22M) X (macOS) (removed from system)

USB-Mapping √ (UTBMap_GA-X670-GX-AX_REV10.kext)
1x Front USB Type-C Port with switch (USB3.0+USB2.0)
4x Front USB Type-A Ports (USB3.0+USB2.0)
1x Back USB Type-C Port with switch (only USB3.0)
8x Back USB Type-A Ports (only USB2.0)
1x Internal USB 2.0 Port for Bluetooth

CPU
AMD Ryzen 9 7950X 4.5 GHz AM5
100-100000514WOF
iGPU AMD Radeon Graphics X (disabled in BIOS)
*¹ CPU is set to ECO-Mode (maxed at 65W instead of 170W) (optional BIOS setting)
*² CPU Precision Boost Overdrive (PBO) is disabled (optional BIOS setting)
*³ CPU is set to ECO-Mode (maxed at 105W instead of 170W) (optional BIOS setting)

RAM
Kingston FURY Beast DDR5-5200 MHz 288-Pin 128 GB Kit (4 x 32 GB)
KF552C40BBK-64 (2x)
(Default (JEDEC) configuration for 4 modules in dual channel running @ DDR5-3600 MHz)

PCI EXPRESS CARDS
AMD Radeon RX 6800 XT Founders Edition 16 GB √ (whatevergreen.kext)
D41205 2202
PCIe-Slot1 (PCIEX16)

Sapphire TOXIC AMD Radeon RX 6950 XT Limited Edition 16 GB √ (whatevergreen.kext)
11317-01-20G
PCIe-Slot1 (PCIEX16)

GIGABYTE MAPLE RIDGE (rev. 1.0) √ (SSDT-DP00_GC-MAPLE-RIDGE_REV10.aml)
9CMAPLER-00-G10
PCIe-Slot2 (PCIEX4) / Intel JHL8540 Thunderbolt 4-Controller
(2x 6-Pin PCIe + THB_U4 + USB connected)
(Windows 11 needs the latest Drivers from ASUS ThunderboltEX 4 ,GIGABYTE Drivers are outdated.)
Cable Matters (Intel certified) 40 Gbps braided active Thunderbolt 4 cable 2.0m
deleyCON 6-Pin PCIe 30cm extension cord (2x)
CablePelado Molex to 6+2-Pin PCIe Adapter 20cm 18-AWG (2x)

GIGABYTE TITAN RIDGE (rev. 2.0) √ (SSDT-DP20_GC-TITAN-RIDGE_REV20.aml)
4719331809614
PCIe-Slot3 (PCIEX2) / Intel JHL7540 Thunderbolt 3-Controller
Flashed with custom Firmware (DSM2.Hackintosh)
Bridged Pin3+5 (Force Power)

Broadcom BCM94360CD √ (macOS Ventura: native) √ (macOS Sequoia: OCLP)
6871658863422
M.2 NGFF Slot
NGFF A+E Key to miniPCIe Adapter with 30cm FPC-Cable extension
miniPCIe WiFi 12+6Pin Adapter for Broadcom

DISPLAY
Dell 34 Curved Monitor
S3422DW
WQHD 3440 x 1440

STORAGE
WD Black SN850X NVMe SSD 2TB (Windows / OpenCore)
WDS200T2X0E-00BCA0
Storage Interface Socket 3 (M2A_CPU PCIe 5.0 x4)

SAMSUNG 990 PRO NVMe SSD 2TB (macOS Sequoia)
MZ-V9P2T0BW
Storage Interface Socket 3 (M2B_CPU PCIe 4.0 x4)

WD Black SN850X NVMe SSD 1TB (macOS Ventura)
WDS100T2X0E-00BCA0
Storage Interface Socket 3 (M2C_SB PCIe 4.0 x4)

WD Green SN350 NVMe SSD 1TB (Windows-Games NTFS)
WDS100T2G0C-00CDH0
Storage Interface Socket 3 (M2D_SB PCIe 4.0 x4)

SanDisk SSD Plus SATA 480GB (Grub Bootloader / OpenCore-Debug / Ubuntu Linux)
SDSSDA-480G-G26
(SATA-3 Port 0)

Seagate Exos 7E8 8TB 512e SATA (Data APFS)
ST8000NM000A-2KE101
(SATA-3 Port 2)

Seagate Exos 7E10 8TB 512e SATA (Data NTFS)
ST8000NM017B-2TJ103
(SATA-3 Port 3)

CASE
Thermaltake CTE C750 Air Snow Full Tower Chassis
CA-1X6-00F6WN-00

PSU
NZXT C1000 Gold
PA-0G2BB-EU

CPU COOLING
Be Quiet! Silent Loop 2 280mm
BW011
(Top-Exhaust with 2x Be Quiet! Silent Wings 3 140mm PWM Fans)

SYSTEM COOLING
Thermaltake CT140 White PC Cooling Fan
CL-F152-PL14WT-A
(3x Bottom-Intake + 2x Front-Intake)

AUDIO INTERFACE
Focusrite Scarlett Solo 4th Generation USB √ Output: Logitech Speaker System Z523 / Input: E-Guitar
PCM0017717-000

Creative Sound Blaster PLAY! 3 USB DAC AMP and External Sound Card √ Plantronics RIG 400HX Headset with Microphone
0054651191273

KEYBOARD/MOUSE
Logitech Craft Wireless Keyboard (Win/Mac)
920-008484

Logitech G502 LIGHTSPEED Wireless Gaming Mouse
MR0076

BOOTLOADER
OpenCore 1.0.4

BENCHMARK
Cinebench R23 (macOS Ventura 13.1 / AMD Radeon RX 6800 XT 16GB)*¹ *²


Cinebench 2024 (macOS Ventura 13.1 / macOS Sequoia 15.3.1 / AMD Radeon RX 6950 XT 16GB)*¹ *²


Cinebench 2024 (macOS Ventura 13.7.6 / AMD Radeon RX 6950 XT 16GB)*¹ *²


check my Github page for files
If anyone finds mistakes or has suggestions for improvement, please post them here, thank you



[clover84]

Oh wow. So it's the new x670, and everything works apart from the BT/WiFi? Cool!



[rhys]

Oh wow. So it's the new x670, and everything works apart from the BT/WiFi? Cool!

I'm assuming we can also just switch out the mobo wifi card for a BCM94360NG one like I just did on an z690. That way you don't even need to use an adaptor.



[rhys]

MY FIRST AMD HACKINTOSH
and its working perfectly - big thanks to this awesome community

Thanks for providing your EFI man!



[KWODO]

I'm assuming we can also just switch out the mobo wifi card for a BCM94360NG one like I just did on an z690. That way you don't even need to use an adaptor.

Thats right. I just didn't want to remove the mainboard again.
You just have to remove the heatsink from the back io. -> here @4:10min+8:50min

(the aorus elite ax and the gaming x ax are identical).



[leesurone]

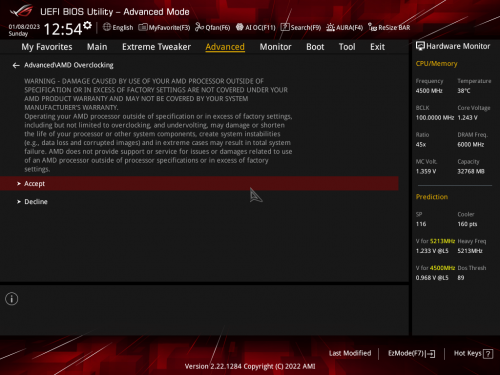

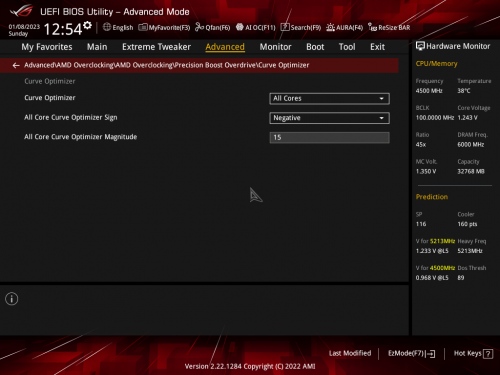

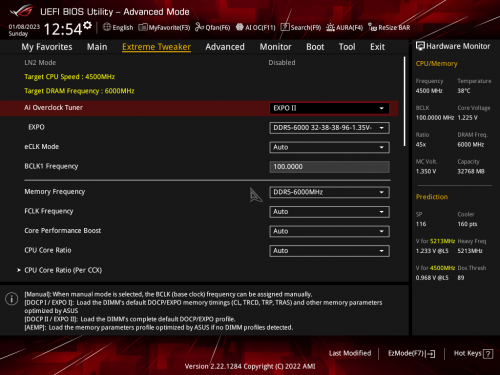

Hi Kwodo, great posting and nice build. I've got a similar setup and have under volted my 7950X to help keep temps down. The settings posted have a minimal impact on benchmarks and overall performance. They should be similar in your bios if you or anyone else is interested, you can see my Cinebench scores are more or less unaffected. I think the difference in scores between your setup and mine is the DDR5 6000 CL32 RAM I'm using. Cheers



[dijimet]

Hello I have same motherboard. I used your EFI, but ethernet (Realtrk 2.5gb) did not worked. Any solution?



[Mac Arthur]

Great job seemingly !I am new on AMD but had 2 Intel Hacks on Z370 and Z490.
Very tempting as this MB is available in my country !Thanks for feedback man...



[Manu76]

Hello,
Does it work on v2? Thanks



[Mac Arthur]

The OP seems to be away for a while
