Hi All,

I am following https://dortania.github.io/OpenCore-Install-Guide/ guide to install Big Sur on PC but each time I am receiving error LoadImage failed.

Kindly help me debug.

PC: Asus H310M K R2.0

Processor: Celeron G4930 Coffee Lake

Ram: 8GB

SSD: 120 Internal.

HDD: 1TB Intermal

MB chipset: H310

com.apple.recovery.boot : downloaded from opencore macrecovery

EFI (Using Opencore):

ACPI: SSDT-AWAC, SSDT-EC-USBX-DESKTOP, SSDT,PLUG,DRTNIA

Kext: Lilu, Apple Alc, SMCProcessor, SMCSuperIO, VirtualSMC, WhateverGreen,RealtekRTL8111

Attaching EFI Folder with config.plist for reference.

Still getting issue.


Edhawk

Guru
Guru
Joined
May 2, 2020
Messages
910
Celeron processors are not natively supported in macOS, as they were never used by Apple. Unlike AMD systems there isn't a body of people looking to create a Hackintosh with a Celeron CPU. The Dortania Anti-Buyers guide list the Intel Celeron CPU as one to avoid!

All the same, here is an EFI that is set for a Coffee Lake Celeron CPU. It uses the Mac mini 8,1 SMBIOS not the iMac 19,1 as you don't have a discrete GPU.

Try it and see if it works. Post a photo of the verbose text if it kernel panics.


Attachments

  • EFI.zip
    10.9 MB · Views: 2

PastEth Man

New member
Joined
Jun 30, 2022
Messages
4

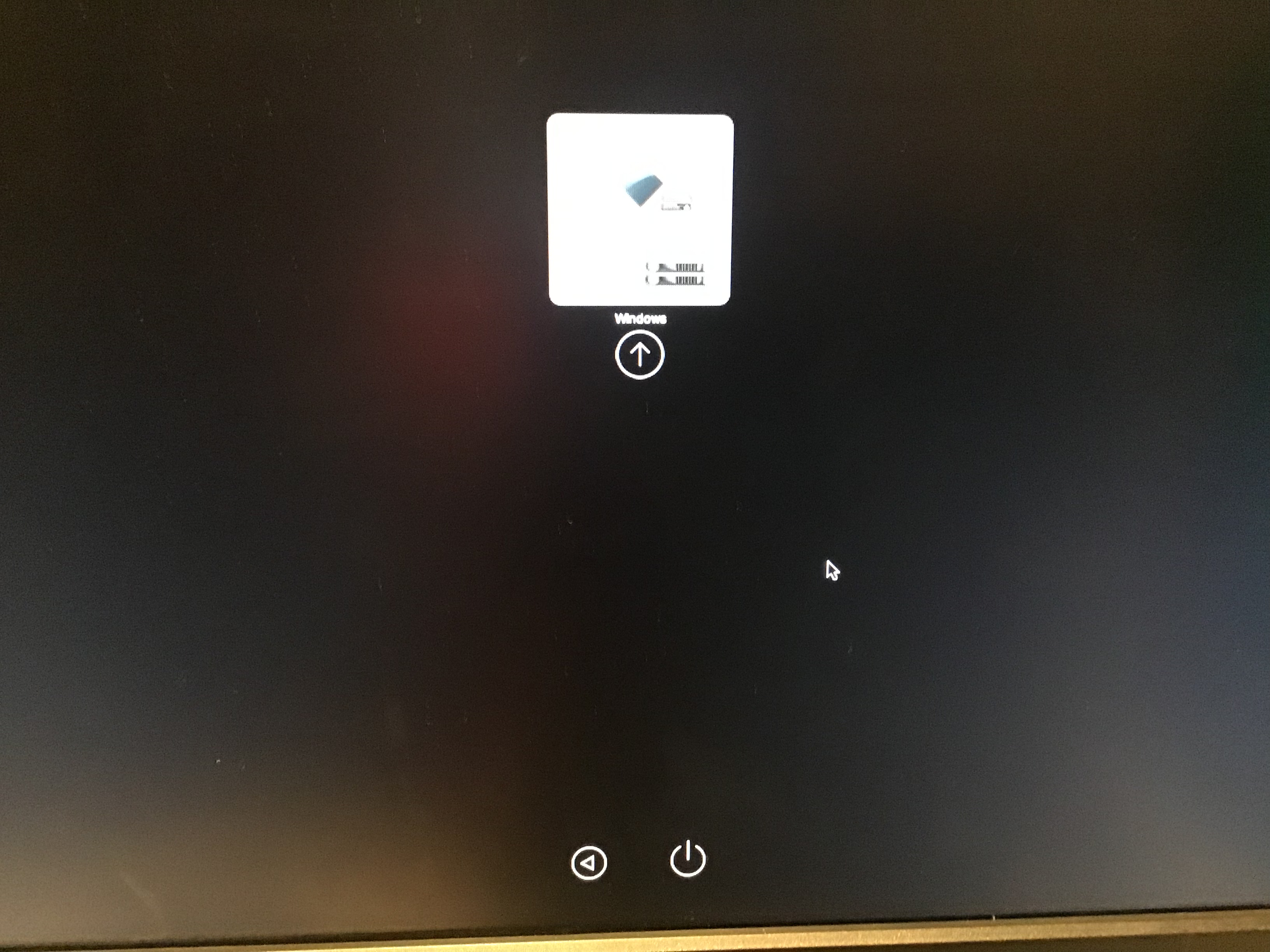

I have managed to fix the above but i’m greeted with this


Attachments

  • 7E5CBD66-3678-405B-853B-DE16498AD4FA.jpeg
    1.8 MB · Views: 7

Middleman

Active member
Joined
Jan 29, 2021
Messages
420
I have managed to fix the above but i’m greeted with this
It looks like you won’t be able to go further as you have a Celeron chip installed which is not supported. You need something more like an 8th or 9th gen Intel Core i5, i7 or i9 chip to run macOS. I recommend you should change your CPU first before trying to install it.
